Class 800 LB Extended Body Gate Valve, A105, F304(L), F22
Model Number: SJ-GATE V-04
Key Specifications / Features
China Class 800 LB Extended Body Gate Valve Manufacturer Shinjo Supplies Class 800 LB Extended Body Gate Valve, ASTM A105, ASTM F304(L), ASTM F22.
Detail Information
Class 800 LB Extended Body gate valve, A105, F304(L), F22

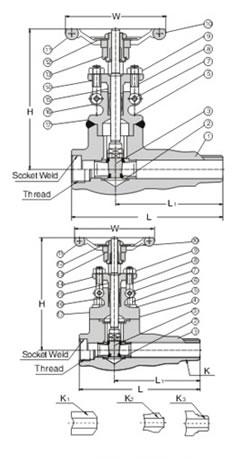

Dimensions (mm) and Weights (kg):
| NO. | Part Name |
CS to ASTM | AS to ASTM | SS to ASTM | ||
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | |||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) | |
| 2 | Seat Ring | A276 420 | A276 304 | A276 304(L) | A276 316(L) | |
| 3 | Wedge | A276 410 & 403 | A182 F304 | A182 F304(L) | A182 F316(L) | |
| 4 | Gasket | Corrugated SS + graphite | SS + PTFE | |||
| 5 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) | |
| 6 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M | |
| 7 | Pin | A276 420 | A276 304 | |||
| 8 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M | |
| 9 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M | |
| 10 | Nameplate | SS | ||||
| 11 | Hand wheel | A197 | ||||
| 12 | H.W. Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M | |
| 13 | Yoke Nut | A276 420 | ||||
| 14 | Gland Flange | A105 | A182 F11 | A182 F304(L) | A182 F316(L) | |
| 15 | Gland | A276 410 | A182 F304(L) | A182 F316(L) | ||
| 16 | Stem Packing | Flexible Graphite | PTFE | |||
| 17 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) | |
| Suitable Medium | W.O.G. etc | W.O.G. etc | HNO3CH3OOH etc | |||
| Suitable Temperature | -29°C~425°C | -29°C~550°C | -29°C~180°C | |||
Dimensions (mm) and Weights (kg):
NPS |
Reduced | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Full | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | ||
| L1 | 107.5 | 107.5 | 107.5 | 120 | 127 | 127 | 152 | |
| L | 147 | 147 | 153.5 | 175.5 | 187 | 187 | 222 | |
| H(OPEN) | 158 | 158 | 169 | 197 | 236 | 246 | 283 | |
| W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | |
Weights |
Bolted | 3.1 | 2.9 | 3.4 | 5.5 | 7.8 | 8.3 | 13.4 |
| Welded | 2.8 | 2.6 | 3.1 | 5.1 | 7.4 | 7.6 | 12.1 | |
