G41 Cast iron ptfe diaphragm valve
Diaphragm valve is one special cut-off valve; Compared to other valve, diaphragm valve are equipped with below fetures:
1. No leakage inside due to the elastic seal;
2. Streamlined runner and small pressure loss
3. No need of packing, then no outward leakage
4. Parts above the diaphragm such as bonnet, stem, etc can not be eroded by medium, for the diaphragm cut off the connection between medium and bonnet.
5. Replaceable diaphragm and low maintenance cost
6. Various lining materials to choose for different medium, and good anti-corrosive.
Parameter of G41 Cast iron ptfe diaphragm valve

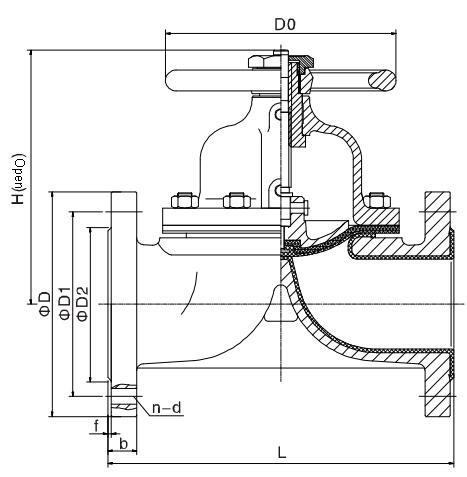

Main Parts of G41 Cast iron ptfe diaphragm valve

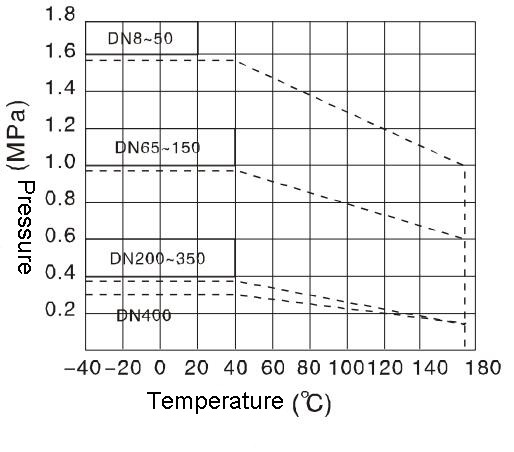

Pressure-Temperature Level

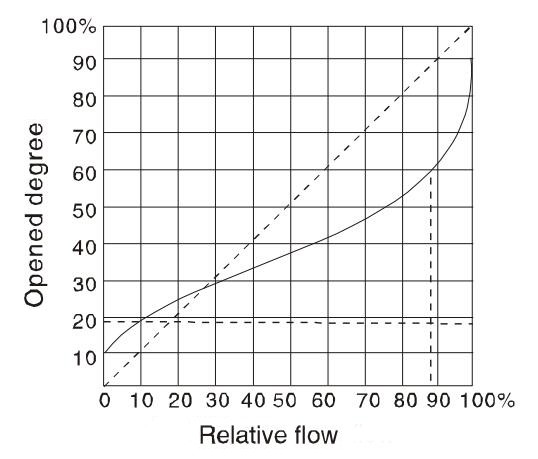

Flow characteristics
Diaphragm valve is one special cut-off valve; Compared to other valve, diaphragm valve are equipped with below fetures:
1. No leakage inside due to the elastic seal;
2. Streamlined runner and small pressure loss
3. No need of packing, then no outward leakage
4. Parts above the diaphragm such as bonnet, stem, etc can not be eroded by medium, for the diaphragm cut off the connection between medium and bonnet.
5. Replaceable diaphragm and low maintenance cost
6. Various lining materials to choose for different medium, and good anti-corrosive.

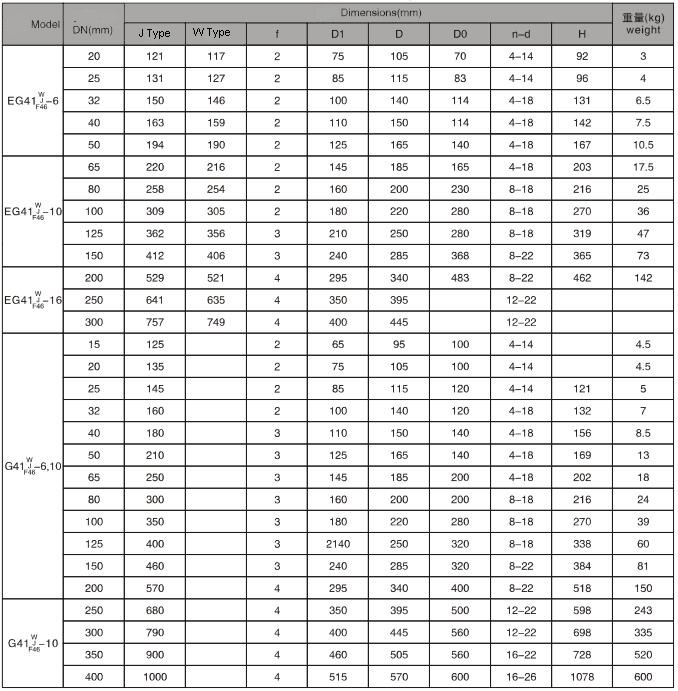

Parameter of G41 Cast iron ptfe diaphragm valve
| Model | PN(MPa) | Pressure (Mpa) | Applicable medium | Working Temperature | |
| Shell Test | Sealing Test | ||||
| EG41J-6 | 0.6 | 0.9 | 0.66 | Non-corrosive fluid | ≤100℃ |
| EG41J-10 | 1.0 | 1.5 | 1.1 | Generally corrosive fluid | ≤85℃ |
| EG41J-116 | 1.6 | 2.4 | 1.76 | Strong acid, alkali and various organic solvents (Exclusive of molten alkali metal and elemental fluorine) | ≤150℃ |
| EG41J-16 | 0.6 | 0.9 | 0.66 | ||
| EG41J-110 | 1.0 | 1.5 | 1.1 | ||
| Part Name | Valve Body | Disc and Cover | Valve Stem | Diaphragm | Handwheel |
| Material | HT200 Lining Rubber | HT200 | 35 | Various basic-type rubbers | HT200 |
| Material | HT200 Lining fluorine plastic | HT200 | 35 | Fluorine Plastic | HT200 |
| Material | HT200 | HT200 | 35 | Natural rubber | HT200 |
