106X Solenoid Control Float & Lever Valve, Cast iron, Ductile iron, WCB
Model Number: SJ-HV-03
Key Specifications / Features
China Solenoid Control Float & Lever Valve Manufacturer Shinjo Supplies 106X Solenoid Control Float & Lever Valve, Cast iron, Ductile iron, WCB.
Contact Supplier
Detail Information
Overview
Performance
Materials
Dimensions
Installation
106X Solenoid Control Float & Lever Valve is with normal open (normal close) Solenoid control equipment based on 100x Float Control Valves. So even if there is no electric power or the flow could not work, it can assure the water level is not beyond the set level and the electric float valve can preset the on/off water level to solve the problem of main valve's frequently opening/closing.
This kind of valve is widely used in high building, feeding system, fire protection, at the inlet of water pool and water tower of enterprises.
This kind of valve is widely used in high building, feeding system, fire protection, at the inlet of water pool and water tower of enterprises.
Performance
| Nominal Pressure (MPa) |
Shell Test (MPa) |
Sealing Test (MPa) |
Fluids | Fluids Temp (°C) |
| 1.0 | 1.5 | 1.1 | Water | 0-80 |
| 1.6 | 2.4 | 1.76 | ||
| 2.5 | 3.75 | 2.75 |
Materials

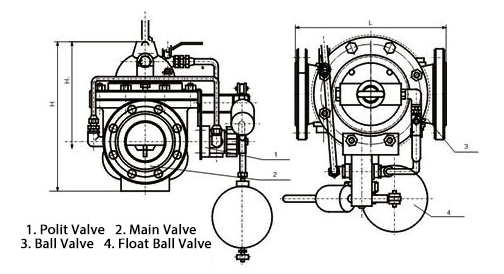

Dimensions
| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | 200 | 203 | 216 | 241 | 292 | 330 | 356 | 495 | 622 | 698 | 787 | 914 | 978 | 978 | 1230 |
| H1 | 260 | 280 | 300 | 315 | 350 | 365 | 385 | 505 | 590 | 620 | 675 | 690 | 715 | 750 | 850 |
| H | 345 | 380 | 400 | 425 | 470 | 505 | 535 | 690 | 815 | 865 | 955 | 995 | 1045 | 1110 | 1286 |

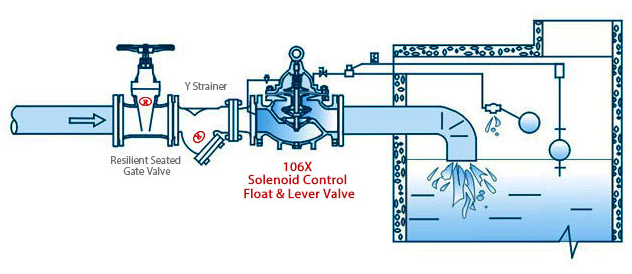

Installation
