Simple Installation CO2 Sensor
Key Specifications / Features
Simple Installation CO2 Sensor Fabricator: Simple Installation Carbon Dioxide Sensors, 400-5000 ppm, Working Current < 40 mA, Ripple < 50 mV.
Request a quote
Detail Information

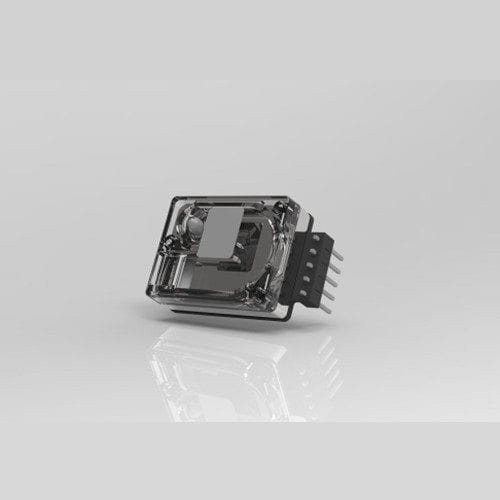

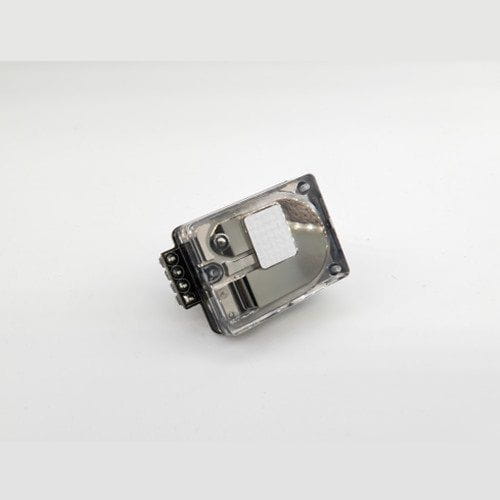

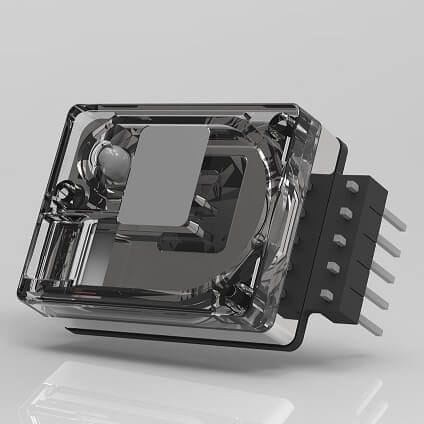

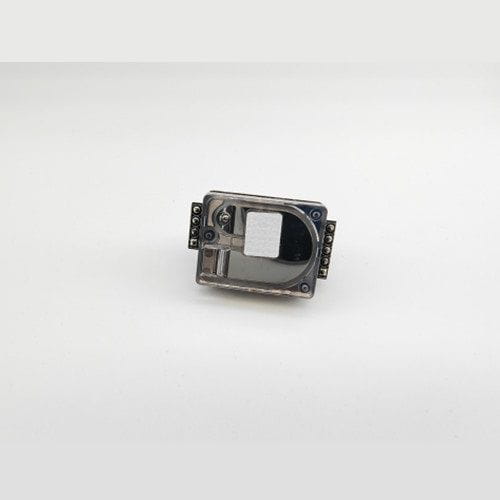

Simple Installation Carbon Dioxide Sensor
Model Number: CS200
Place of Origin: Sichuan, China
Brand Name: PULSE
Type: CO2 sensor
Measuring type: CO2
Description: Carbon dioxide sensor
Output: UART TTL
Range: 400-5000ppm
Weight: 15g
Working current: <40mA
Data interface: UART_TTL (3.3V)
Working voltage: DC (5.0±0.1)V, Ripple <50mV
Working condition: -10-50℃; 0-95%RH (non-condensing)
Storage condition: -30-70℃; 0-95%RH (non-condensing)
Selling Units: Single item
Single package size: 3.3 X 2.1 X 1.72 cm
Single gross weight: 0.015 kg
Model Number: CS200
Place of Origin: Sichuan, China
Brand Name: PULSE
Type: CO2 sensor
Measuring type: CO2
Description: Carbon dioxide sensor
Output: UART TTL
Range: 400-5000ppm
Weight: 15g
Working current: <40mA
Data interface: UART_TTL (3.3V)
Working voltage: DC (5.0±0.1)V, Ripple <50mV
Working condition: -10-50℃; 0-95%RH (non-condensing)
Storage condition: -30-70℃; 0-95%RH (non-condensing)
Selling Units: Single item
Single package size: 3.3 X 2.1 X 1.72 cm
Single gross weight: 0.015 kg
| Product Model | CS200 |
| Brand | PULSE |
| Origin | Chengdu, China |
| Size（mm) | 33*21*17.2 mm |
| Measuring type | CO2 |
| Range | 400-5000ppm |
| Weight | 15g |
| Working current | ＜40mA |
| Working voltage | DC (5.0±0.1)V，Ripple <50mV |
| Working condition | -10-50℃；0-95%RH（non-condensing） |
| Storage condition | -30-70℃；0-95%RH（non-condensing） |
| Data interface | UART_TTL(3.3V) |
