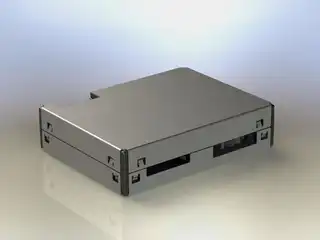

Laser PM2.5 Dust Sensor for Environmental Monitoring
Key Specifications / Features
Laser PM2.5 Dust Sensor Provider: Laser Dust Sensors for Environmental Monitoring, PM2.5 Measurement, Real-time Detection, High Anti-interference Capability.
Request a quote
Detail Information
Features
·Continuous and real-time detection
·Accurate and reliable data
·Minimum particle resolution of 0.3μm in size
·Laser anti-attenuation & constant brightness function
·High anti-interference capability
·Standard TTL serial port data output
·Small size for easy installation and use
·High precision, rapid response
Application Environments
·Air Purifier
·Fresh Air System
·Air Conditioner
·Car Air Purifier
·Air Quality Detector
·Environmental Monitoring
·Handheld Air Quality Detector
Specification Parameters
Measurement Type: PM2.5
Measurement Range: 0-1000μg/m3
Measurement Consistency: ≥100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3
Measurement Accuracy (Reference Standard: TSI 8530): ≥100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3
Data Interface: UART TTL, 9600 bps
Inlet and Outlet: Side
Power Supply: DC 5±0.5V, Ripple＜50mV
Working Condition: Temp: -15-60℃; Humidity: 0-90% RH
Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH
Weight: 26g
Size: 48mm x 37mm x 12mm
MTTF: ≥30000H (Intermittent Mode: Intermittent Operation)
Product Classification
·Continuous and real-time detection
·Accurate and reliable data
·Minimum particle resolution of 0.3μm in size
·Laser anti-attenuation & constant brightness function
·High anti-interference capability
·Standard TTL serial port data output
·Small size for easy installation and use
·High precision, rapid response
Application Environments
·Air Purifier
·Fresh Air System
·Air Conditioner
·Car Air Purifier
·Air Quality Detector
·Environmental Monitoring
·Handheld Air Quality Detector
Specification Parameters
Measurement Type: PM2.5
Measurement Range: 0-1000μg/m3
Measurement Consistency: ≥100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3
Measurement Accuracy (Reference Standard: TSI 8530): ≥100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3
Data Interface: UART TTL, 9600 bps
Inlet and Outlet: Side
Power Supply: DC 5±0.5V, Ripple＜50mV
Working Condition: Temp: -15-60℃; Humidity: 0-90% RH
Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH
Weight: 26g
Size: 48mm x 37mm x 12mm
MTTF: ≥30000H (Intermittent Mode: Intermittent Operation)
Product Classification
| PN | Range (μg/m3) | Product Type | Packing Specification | L*W*H (mm) |
| PS5303-B | 0-1000 | PM2.5 | 70 pcs/layer, 6 layers/ctn | 510*295*295 |
