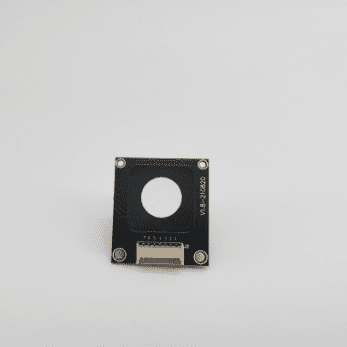

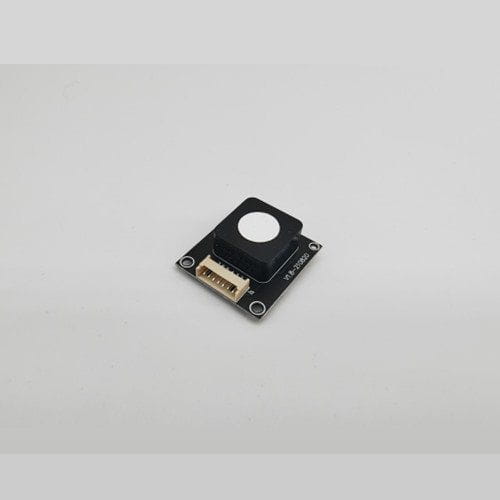

CH2O Formaldehyde Sensor, Electrochemistry Detecting
Key Specifications / Features
CH2O Formaldehyde Sensor Supplier: CH2O Formaldehyde Sensors, Electrochemistry Detecting, DC 5V±0.5V, Ripple wave < 50 mV, UART TTL 9600 PBS.
Request a quote
Detail Information
Formaldehyde Sensor
Formaldehyde, a colorless and harmful chemical carcinogen, widely exists in common furniture, wood floor, paint and other home spaces, and is commonly used in industrial production such as textile and food processing. With the continuous improvement of people's living standards, the use of indoor decoration materials and complexity is also increasing.
Gas Detected: CH2O
Detecting Principle: Electrochemistry principle
Measurement Range: 0-2ppm
Resolution: 0.01ppm
Working condition: -10℃ - 50℃, 15-90%RH（non-condensing）
Storage Condition: 0℃-50℃, 15-90%RH（non condensing）
Warm-up time: ≤3min
Response Time: ≤60s
Recovery Time: ≤60s
Power Supply: DC 5V±0.5V，Ripple wave<50mV
Working Current: <6mA
Dimension: 25.5mm*23mm*6.4mm
Digital output mode: UART TTL 9600pbs
MTTF: > 3years
Formaldehyde, a colorless and harmful chemical carcinogen, widely exists in common furniture, wood floor, paint and other home spaces, and is commonly used in industrial production such as textile and food processing. With the continuous improvement of people's living standards, the use of indoor decoration materials and complexity is also increasing.
Gas Detected: CH2O
Detecting Principle: Electrochemistry principle
Measurement Range: 0-2ppm
Resolution: 0.01ppm
Working condition: -10℃ - 50℃, 15-90%RH（non-condensing）
Storage Condition: 0℃-50℃, 15-90%RH（non condensing）
Warm-up time: ≤3min
Response Time: ≤60s
Recovery Time: ≤60s
Power Supply: DC 5V±0.5V，Ripple wave<50mV
Working Current: <6mA
Dimension: 25.5mm*23mm*6.4mm
Digital output mode: UART TTL 9600pbs
MTTF: > 3years
