ASTM A192 Extruded Fin Tube, ASME SA192, OD 1-15.75 Inch
Key Specifications / Features
ASTM A192 Extruded Fin Tube Supplier: ASME SA192 Finned Tubes, OD 1-15.75 Inch, Fin H 0.3-49.50 MM, Fin Segment W 5/32 or 5/16 Inch, Fin Pitch 1-20 Fins/Inch.
Request a quote
Detail Information
ASTM A192 Extruded High Finned Tube
Tube Size, Pipe Size: 1" to 15.75" OD.
Fin Height: 0.3mm to 49.50mm.
Fin Segment Width: 5/32" or 5/16".
Fin Thickness: 0.8 mm-4.0 mm.
Fin Pitch: 1 to 20 fins per Inch.
Materials: Carbon Steel, Alloy Steel, Stainless Steel and Corrosion-resistance Steel.
Application: Heat Transfer Equipment including Heat Exchangers, Boilers, Economizers, Super Heaters, Fired Heaters, HRSG, Waste Heat Recovery Systems, etc.

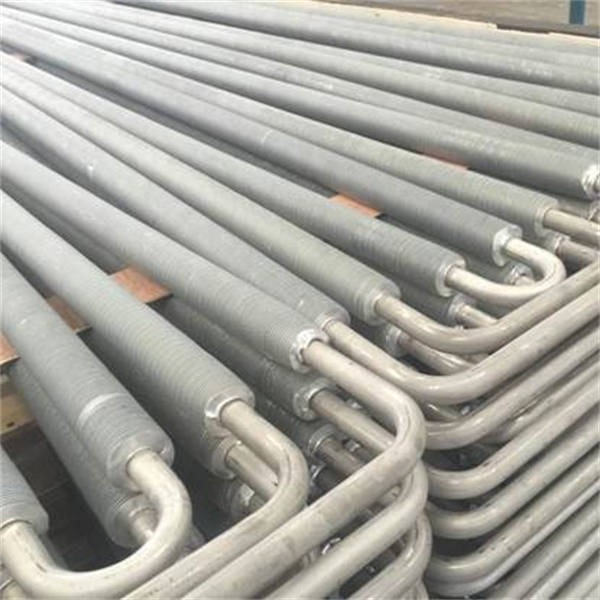

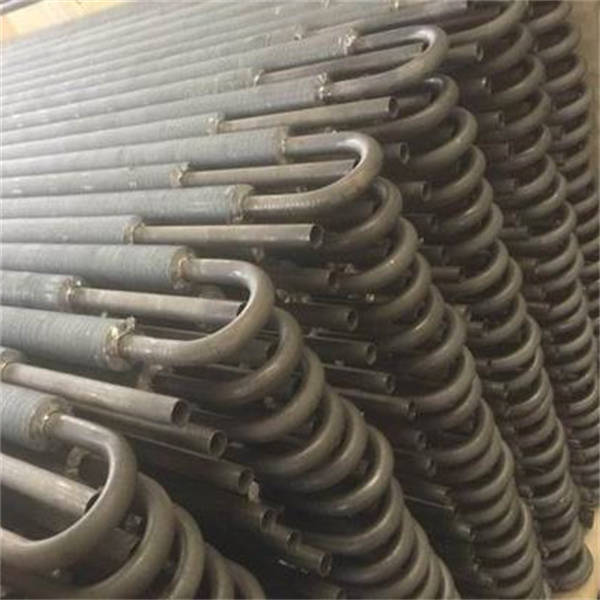

Services: In addition to finning and tube bending we offer tubing, pipe, cutting, beveling, return bends, elbows, crating, freight and economizer consulting.
EXTRUDED FINNED TUBE (DR type)

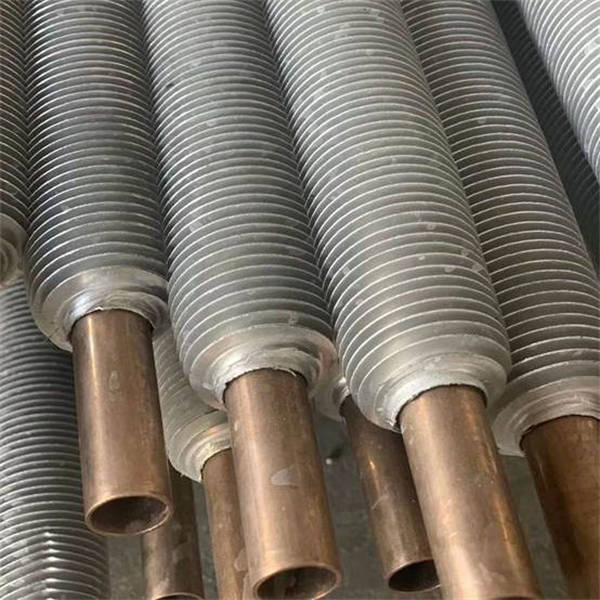

The extruded finned tube is a base tube sleeved into an aluminum tube, and then the aluminum tube is extruded to form a fin. All the tubes are tightly covered by fins to avoid atmospheric corrosion, and the base tube and fins are tightly joined together.
Features:
1. High heat transfer performance, low contact thermal resistance, and the maximum operating temperature is as high as 300℃.
2. The contact area between the fin and the tube is large, and the fit is tight and reliable.
3. Good corrosion resistance, stable performance in long-term use.
4. The fin has good rigidity and is not easy to deform.
It is widely used in steel, petroleum, chemical, machinery, shipbuilding, power station, hospital and food industries.
MAXIMUM WORKING TEMPERATURE 285°C
ATMOSPHERIC CORROSION RESISTANCE: HIGH.
MECHANICAL RESISTANCE: HIGH.
FIN MATERIAL: ALUMINIUM.
TUBE MATERIALS: ANY THEORETICAL LIMIT.
Tube Size, Pipe Size: 1" to 15.75" OD.
Fin Height: 0.3mm to 49.50mm.
Fin Segment Width: 5/32" or 5/16".
Fin Thickness: 0.8 mm-4.0 mm.
Fin Pitch: 1 to 20 fins per Inch.
Materials: Carbon Steel, Alloy Steel, Stainless Steel and Corrosion-resistance Steel.
Application: Heat Transfer Equipment including Heat Exchangers, Boilers, Economizers, Super Heaters, Fired Heaters, HRSG, Waste Heat Recovery Systems, etc.
Services: In addition to finning and tube bending we offer tubing, pipe, cutting, beveling, return bends, elbows, crating, freight and economizer consulting.
EXTRUDED FINNED TUBE (DR type)
The extruded finned tube is a base tube sleeved into an aluminum tube, and then the aluminum tube is extruded to form a fin. All the tubes are tightly covered by fins to avoid atmospheric corrosion, and the base tube and fins are tightly joined together.
Features:
1. High heat transfer performance, low contact thermal resistance, and the maximum operating temperature is as high as 300℃.
2. The contact area between the fin and the tube is large, and the fit is tight and reliable.
3. Good corrosion resistance, stable performance in long-term use.
4. The fin has good rigidity and is not easy to deform.
It is widely used in steel, petroleum, chemical, machinery, shipbuilding, power station, hospital and food industries.
MAXIMUM WORKING TEMPERATURE 285°C
ATMOSPHERIC CORROSION RESISTANCE: HIGH.
MECHANICAL RESISTANCE: HIGH.
FIN MATERIAL: ALUMINIUM.
TUBE MATERIALS: ANY THEORETICAL LIMIT.
