Butt Welded Forged Trunnion Ball Valve

Name: Butt Welded Forged Trunnion Ball Valve
SKU: LF 14 FSTB 06
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China Trunnion Ball Valve: Forge steel body material, butt welded end connection, API 6D, ASME B16.34 standard, Full port or reduced port, 2"-24".

Request a quote

Detail Information

Specification

Design Standard: API 6D, ASME B16.34

Face to Face: API 6D, ASME B16.10

Butt Welded End Connection: ASME B16.5, ASME B16.25

Inspection and Test: API 6D, API 598

Feature

Full port or reduced port

Trunnion mounted ball

Blowout-proof stem

Double block & bleed

Emergency sealant injection

Cavity pressure self relief

Size: 2"-24"

Rating: 150LB-1500LB

Body Materials: Forged Steel

Trim: A105+ENP, F6a, F304, F316

Operation: Lever, Gear, Electric, Pneumatic

Similar Products

Handwheel Trunnion Ball Valve, Thread

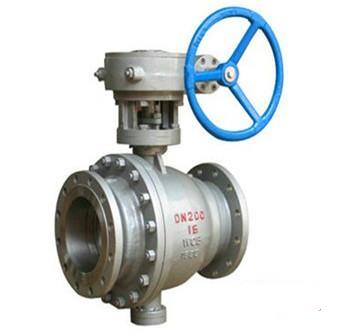

Reduced Bore Trunnion Ball Valve, Cast Steel

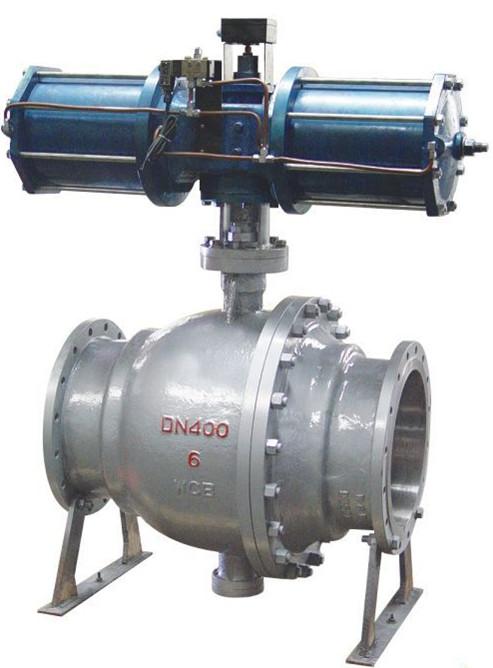

API 6D High Pressure Pneumatic Trunnion Ball Valve
