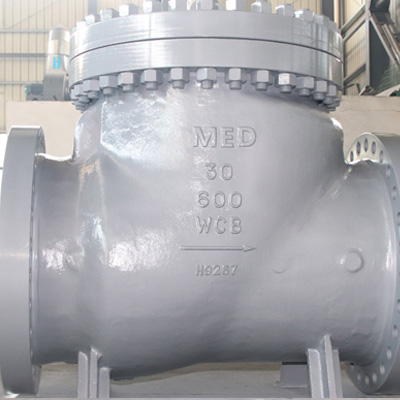

Swing Check Valve, 30IN, CL600, API 6D, BS 1868, ASME B16.34

Name: Swing Check Valve, 30IN, CL600, API 6D, BS 1868, ASME B16.34
SKU: MFRS-230824-CV-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Seeking a dependable Swing Check Valve? Our design meticulously aligns with API 6D, BS 1868, and ASME B16.34 standards. Featuring a bolted bonnet cover, this valve comes in a 30-inch size (DN750). Built to excel in Class 600 LB and PN100 conditions, it adheres to the Face to Face dimensions outlined by ASME B16.10. Offering choices between Butt Weld (BW) and Flanged End connections, this valve embodies precision engineering for reliable and consistent performance.

Request a quote

Detail Information

Standards Compliance
Design & Manufactured to API 6D, BS 1868, ASME B16.34.
P.T Ratings to ASME B16.34.
Flanged Ends to ASME B16.5.
Butt-weld Ends to ASME B16.25.
Threaded Ends to ASME B1.20.1.
Socket-weld Ends to ASME B16.11.
Face to Face Dimensions to ASME B16.10.
Inspect & Tested API 598.
Valves Marking to MSS SP-25.
Structured in Bolted Cover.
Pressure Ratings from Class 150-1500 LB, PN16-PN250.
Ends Connections in Flanged R.F or RTJ, Butt-welded and Grooved
Size Ranges from 1-1/2 - 60 Inch.
Optional Bypass system & Counter-weight Assembly.
Body Materials available in Cast Carbon Steel, Low Cast Carbon Steel, Cast Alloy Steel, Cast Stainless Steel, Cast Duplex & Super Duplex Steel, Special Materials in Cast Monel, Alu. Bronze etc.
Trim Materials available in 13%Cr, ASTM A182 F11, ASTM A182 F22, SS 304, SS 304L, SS 316, SS 316L and other specials.
