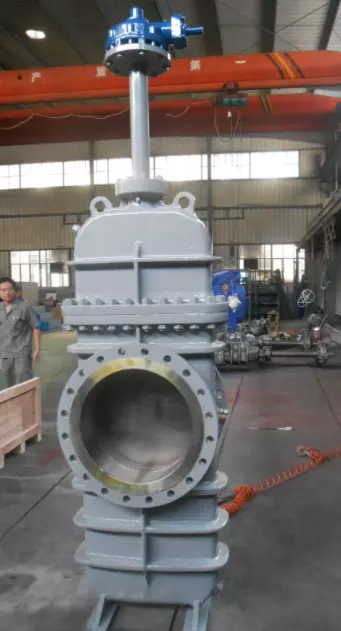

Slab Gate Valve, API 6D, ASME B16.34, 48 Inch, Class 150 LB

Name: Slab Gate Valve, API 6D, ASME B16.34, 48 Inch, Class 150 LB
SKU: MFRS-231205-GV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover our API 6D and ASME B16.34 compliant slab gate valves. Our range includes both single-plate and double-plate flat gate valves with deflector holes. With options like the 48-inch size and a pressure rating of 150 LB, these valves are constructed from high-quality materials such as ASTM A216 WCB and WCC.

Request a quote

Detail Information

Product Item: Slab Gate Valve
TYPE: Single and double-plate flat gate valve with deflector hole
Design Standard: API 6D, ASME B16.34
Test Standard: API 598
Pressure: CLASS 150-1500 LB (PN20-PN260)
Size: NPS 2-48 Inch (DN50-DN1200)
Connection Ends: ASME B16.5, ASME B16.47, ASME B16.25
Main material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12, ASTM A217 C12A, ASTM A217 CA15, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A351 CN3MN, ASTM A351 CK3MCUN, ASTM A351 CN7M, ASTM A352 LCB, ASTM A352 LCC, ASTM A494 CW-6MC, ASTM A494 CU5MCuC, ASTM A494 M35-1, ASTM A995 4A (CD3MN), ASTM A995 5A (CE3MN), ASTM A995 6A (CD3MWCuN), ASME B148 C95800, ASME B148 C95500, etc.
