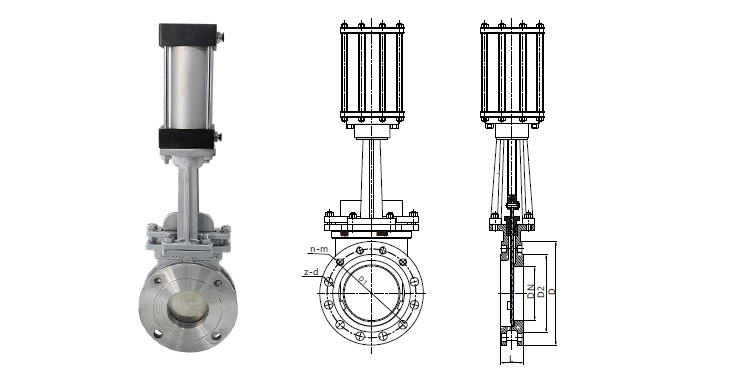

Pneumatic Knife Gate Control Valve, A351 CF8, 1/2-40 IN, 300 LB

Name: Pneumatic Knife Gate Control Valve, A351 CF8, 1/2-40 IN, 300 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Our Pneumatic Knife Gate Control Valves are engineered for high performance and reliability, constructed from premium stainless steel and designed to meet rigorous industry standards. These valves are available in sizes from 1/2 inch to 40 inches (DN15-DN1000) and have a pressure rating of 300 LB (PN50).

Request a quote

Detail Information

Size Range	DN15 to DN1000 (1/2 Inch to 40 Inch)
Body Material	Cast Iron, Carbon Steel(WCB), Stainless Steel(ASTM A351 CF8, ASTM A351 CF8M)
Disc Material	ASTM A216 WCB、Cast Iron, Stainless Steel(ASTM A351 CF8, ASTM A351 CF8M)
Stem Material	Stainless Steel (ASTM A351 CF8, ASTM A351 CF8M)
Sealing Material	PTFE
Connection Type	Flanged Type, Lug Type, Wafer Type (GB/ANSI/JIS/DIN)
Pressure Rating	300PSI
Temperature Of Medium	-30°C to 300°C (-86°F to 572°F)
Optional Accessories	Solenoid Valve, Positioner, Limit Switch, F.R.L., Manual Device
Applicable Medium	Mud, Material, Viscous, Granular Fluid
Applications	Wastewater Treatment, Mining, Pulp & Paper, Chemical Processing, etc

Advantages

• Optional Configurations: Available in single-acting and double-acting models to suit various needs.
• High Solids Handling: Ideal for media with abrasive or high solids content, minimizing the risk of blockages.
• Corrosion Resistance: Fleyenda actuators have successfully passed a 1,000,000-cycle life test, demonstrating excellent durability.
• Temperature Resistance: Operates efficiently in a wide temperature range from -30°C to 300°C (-86°F to 572°F).
• Material Selection: Available in Cast Iron, Carbon Steel (ASTM A216 WCB), and Stainless Steel.
• Low Maintenance: Fewer moving parts result in less maintenance and reduced downtime.
• Safety: Does not require flammable or explosive substances, making it safe for hazardous conditions.
