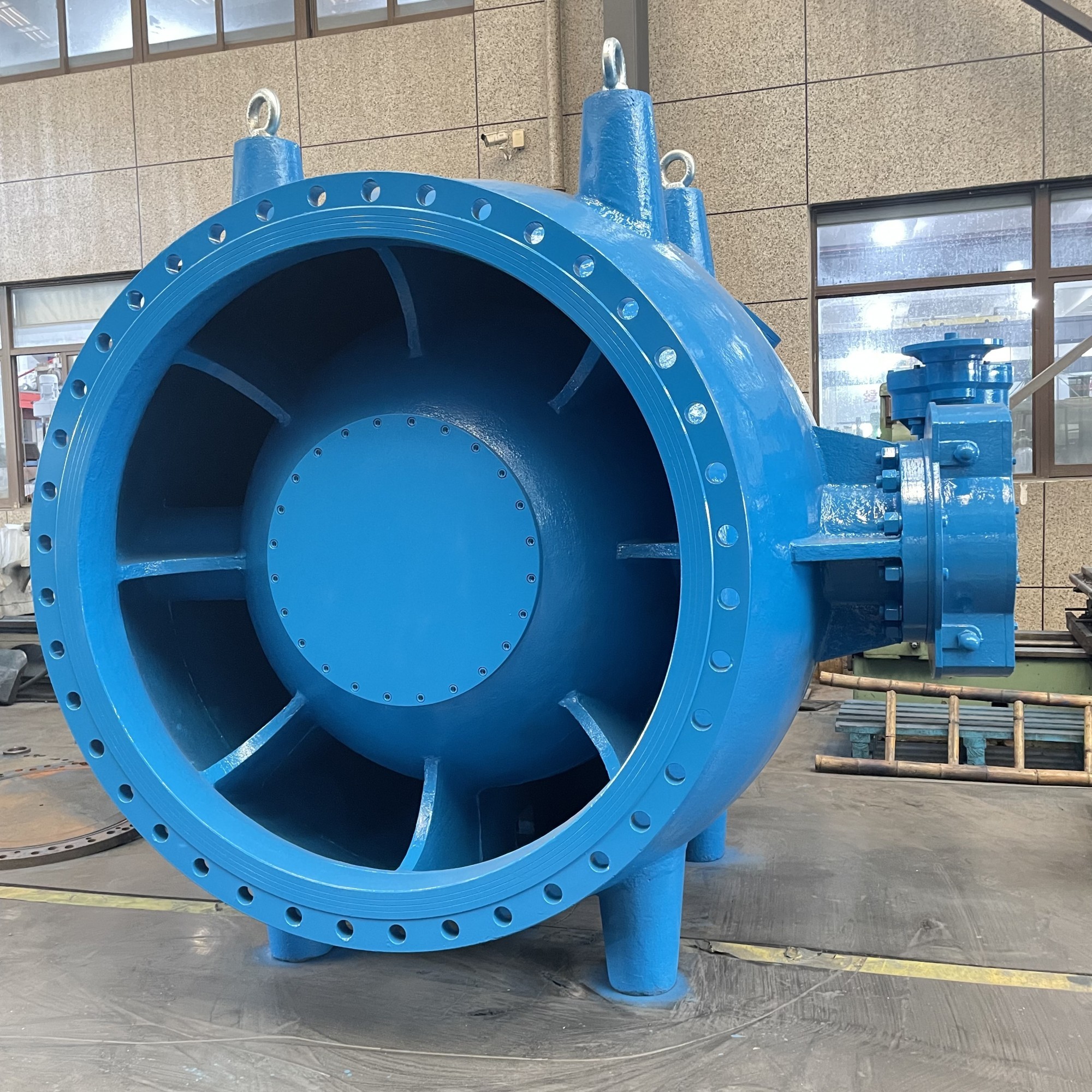

Piston Flow Regulator, Ductile Iron QT450-10, DN1800, PN16
Model Number: MFRS-231205-Others-03
Key Specifications / Features
As a prominent CJ/T 219 piston flow regulator plant in China, we specialize in manufacturing high-quality regulators using ductile cast iron QT450-10. Our regulators, with a substantial size of DN1800 (72 inches), are designed for PN16 pressure rating and Class 150 LB capacity. Featuring raised flanges and meeting Face to Face GB/T 12221 standards, our regulators ensure efficient and reliable flow control in various industrial applications.
Detail Information
Valve description: PISTEN TYPE FLOW REGULATOR, FLOW CONTROL, Raised flange.
Design: CJ/T 219.
Body: QT450-10.
Nominal size: DN1800.
Nominal class: PN16.
End Connection: RF.
Face to face: GB/T 12221.
Test and inspection: GB/T 13927.
Product Range:
Body material: Ductile cast iron.
Normal diameter: DN150 - DN2000.
End connection: Flanged.
Pressure range: Class 150 - 600 LB (PN16 - PN100).
Working temperature: -29℃ - +80℃.
Technical parameters and characteristics
| Product | PISTEN TYPE FLOW REGULATOR. |
| Nominal diameter | DN150 - DN2000. |
| Design temp. | Down to -29℃. |
| Design pressure | 150 - 600 LB. |
| Material | Ductile cast iron. |
| Design standard | CJ/T219. |
| Face to face | GB/T12221. |
| Connection end | Flange. |
| Test standard | GB/T13927. |
| Package | Plywood |
| Application | WATER, OIL |
| Feature | Pressure control and flow control |
