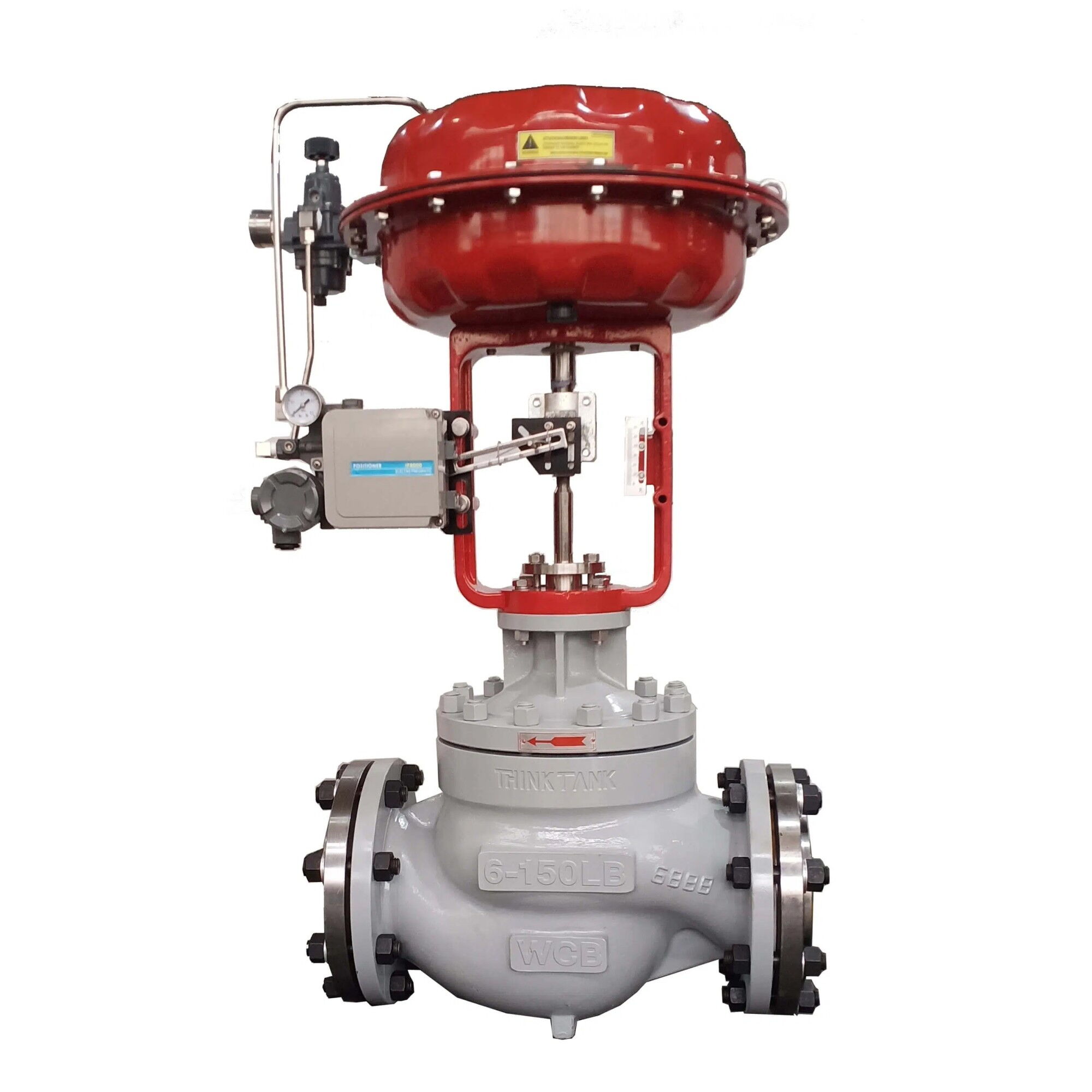

Multi-Spring Diaphragm Actuator Control Valve, WCB, 1-8 Inch
Key Specifications / Features
As a leading producer of multi-spring diaphragm actuator control valves, we offer pneumatic models made from ASTM A216 WCB. Our valves come in sizes ranging from 1 to 8 inches and pressure classes from 150 to 600 LB. Featuring a top-entry design and gasket seat, they are available with either weld or flanged ends. These valves are engineered for reliable performance and precise control in various industrial settings.
Request a quote
Detail Information
Product Name: Multi-Spring Diaphragm Actuator Control Valve
Body Type: Globe
Sizes: 1 Inch, 1-1/2 Inch, 2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch
Pressure Ratings: Class 150 LB, 300 LB
Materials: Carbon Steel, Stainless Steel
End Connection: Raised Face Flange, Weld End
Flow Characterisation: Linear or equal percentage
Seat Leakage: Standard ANSI class IV, Optional ANSI class V or VI
Seat Type: Gasket
Actuator Type: Pneumatic, electric
Temperature Range:
• -46°C - 565°C for unbalanced trim
• -46°C - 315°C for balanced trim
Feature:
• Quick Change Trim: Features a design with no screwed or welded trim components, allowing for straightforward and quick trim replacement.
• Proven Trim Design: Includes a range of proven designs such as ported cage, drilled-hole cage, flare-hole cage, and cascade anti-cavitation trims to address various application needs.
• Multi-Spring Diaphragm Actuator: The multi-spring design improves both hysteresis and dead band performance, ensuring more precise control.
• Accessories: A full selection of accessories is available to meet diverse operational requirements.
Body Type: Globe
Sizes: 1 Inch, 1-1/2 Inch, 2 Inch, 3 Inch, 4 Inch, 6 Inch, 8 Inch
Pressure Ratings: Class 150 LB, 300 LB
Materials: Carbon Steel, Stainless Steel
End Connection: Raised Face Flange, Weld End
Flow Characterisation: Linear or equal percentage
Seat Leakage: Standard ANSI class IV, Optional ANSI class V or VI
Seat Type: Gasket
Actuator Type: Pneumatic, electric
Temperature Range:
• -46°C - 565°C for unbalanced trim
• -46°C - 315°C for balanced trim
Feature:
• Quick Change Trim: Features a design with no screwed or welded trim components, allowing for straightforward and quick trim replacement.
• Proven Trim Design: Includes a range of proven designs such as ported cage, drilled-hole cage, flare-hole cage, and cascade anti-cavitation trims to address various application needs.
• Multi-Spring Diaphragm Actuator: The multi-spring design improves both hysteresis and dead band performance, ensuring more precise control.
• Accessories: A full selection of accessories is available to meet diverse operational requirements.
