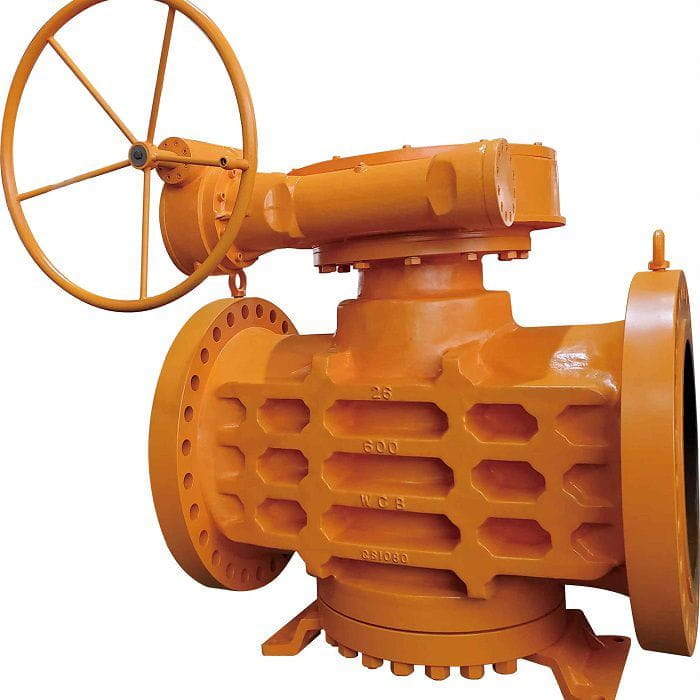

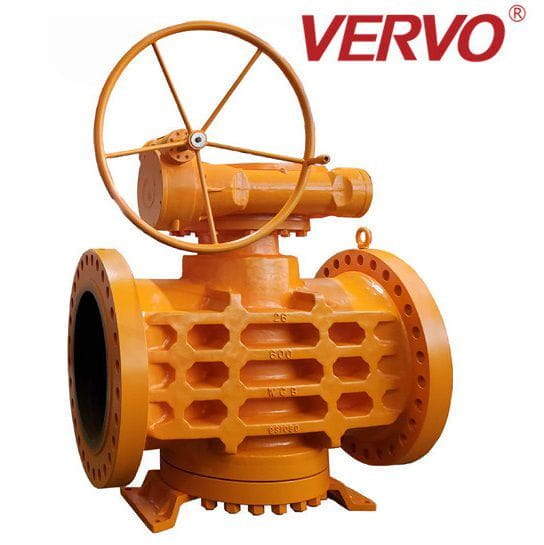

Lubricated Sleeved Plug Valve, ASTM A216 WCB, 26 IN, 600 LB

Name: Lubricated Sleeved Plug Valve, ASTM A216 WCB, 26 IN, 600 LB
SKU: MFRS-230821-Other-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Explore our Lubricated Sleeved Plug Valve, designed in accordance with API 599, API 6D, and ISO 14313 standards. Constructed from robust Carbon Steel ASTM A216 WCB, these valves are available in a 26-inch (DN650) size with a 600 LB rating. They feature a Sleeve Type design, Pressure Seal Balance, and a choice of Full or Reduced Bore options.

Request a quote

Detail Information

Detail Infomation
Lubricated Sleeved Plug Valve

Design Standard: API 599, API 6D, ISO 14313
Body Material: Casting Steel Carbon Steel ASTM A216 WCB
Nominal Diameter: 26 Inch, 650mm, DN650
Pressure: Class 600 LB
Face To Face: API 6D, ASME B16.10
Test And Inspection: API 598, API 6D
Feature: Sleeve Type, Pressure Seal Balance, Full or Reduced Bore
End Connection: ASME B16.5 (RF, RTJ), ASME B16.47 (RF, RTJ), MSS SP-44 (NPS 22 Only), ASME B16.25 (BW)

Product Range

Sizes: NPS 1/2 to NPS 36 Inch
Class 150 to Class 2500 LB
Material: Available in Forging for NPS ≤ 2 (ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F51, ASTM A182 F53, ASTM A350 LF2, ASTM A350 LF3, ASTM A350 LF5, Casting (ASTM A216 WCB, ASTM A351 CF3, ASTM A351 CF8, ASTM A351 CF3M, ASTM A351 CF8M, ASTM A995 4A, ASTM A995 5A, ASTM A352 LCB, ASTM A352 LCC, ASTM A352 LC2), Monel, Inconel, Hastelloy
Design standard: Design & manufacture according to API 599, API 6D, ISO 14313;
Face-to-face according to API 6D, ASME B16.10;
Test & inspection according to API 598, API 6D;
Also available per NACE MR-0175, NACE MR-0103, ISO 15848
End Connection according to ASME B16.5 (RF, RTJ), ASME B16.47(RF, RTJ), MSS SP-44 (NPS 22 Only), ASME B16.25 (BW);
