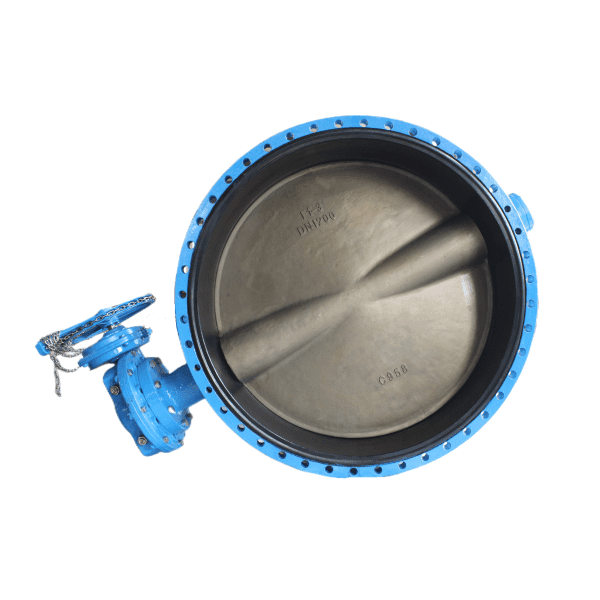

Concentric Butterfly Valve, ASTM A216 WCB, 48 Inch, 150 LB

Name: Concentric Butterfly Valve, ASTM A216 WCB, 48 Inch, 150 LB
SKU: MFRS-230816-BV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Explore our selection of premium double-flange concentric butterfly valves available at our reputable valve manufacturing company. Our butterfly valve boasts a generous 48-inch size (DN1200) and is meticulously engineered to align with Class 150 LB and PN16 standards. It comes equipped with a gear operation mechanism, complete with a chain-wheel for seamless and effective control. Crafted from robust carbon steel, this valve assures prolonged and dependable performance. The C95800 Al-Brz disc offers exceptional resistance against corrosion, while the BUNA-N lined seat provides a steadfast sealing solution. Rely on our expertise in crafting superior butterfly valves to meet your industrial requirements.

Request a quote

Detail Information

Design Standard: API 609 Cat A, EN593
Structure: Concentric
Body Material: ASTM A216 WCB
Trim Material: B148 C95800 disc, BUNA-N seat
Nominal size: 48 Inch, DN1200
Nominal class: 150 LB, PN16
End Connection: Double Flange
Operation: Gear Operation with Chainwheel
Face to face: API 609
Test and inspection: API 598
Key Features: Anti-corrosive rubber seat, Low torque, Excellent control characteristics, Economical material and installation space

Product Range:
Body material: Iron, ASTM A216 WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: PN6-PN20
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
End connection: Wafer, Lug, Flanged
