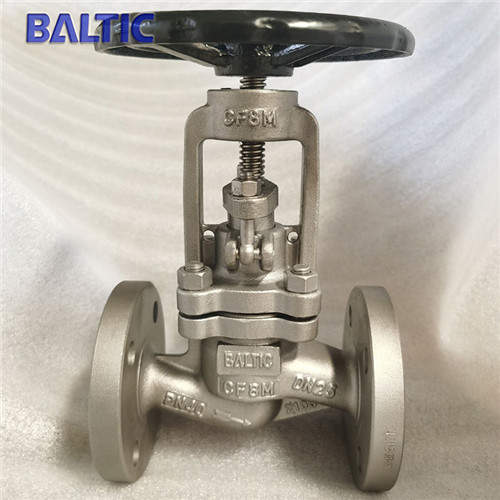

BS 1873 ASTM A351 CF8 Globe Valve
Key Specifications / Features
BS 1873 ASTM A351 CF8 Globe Valve Manufacturer in China: ASTM A351 Grade CF8 Globe Valve, BS 1873, BW Ends, Manual, Electric, Bevel Gear Transmission.
Detail Information
Product Name: ASTM A351 CF8 Globe Valve.
Material: ASTM A351 Grade CF8.
Design Standard: BS 1873.
Structure length: ANSI B16.10.
Pipe flanges: ANSI B16.5.
Butt end size: ANSI B16.25.
Inspection and Testing: API 598.
Transmission: manual, electric, bevel gear.
The ASTM A351 Grade CF8 Globe Valve manufactured by Topper Valve is designed by BS 1873 Standard with manual, electric or bevel gear transmission.
The main shape and connection dimensions
Material: ASTM A351 Grade CF8.
Design Standard: BS 1873.
Structure length: ANSI B16.10.
Pipe flanges: ANSI B16.5.
Butt end size: ANSI B16.25.
Inspection and Testing: API 598.
Transmission: manual, electric, bevel gear.
The ASTM A351 Grade CF8 Globe Valve manufactured by Topper Valve is designed by BS 1873 Standard with manual, electric or bevel gear transmission.
The main shape and connection dimensions
| DN | L | D | D1 | D2 | b | Z-Φd | H | D0 |
| 150Lb | ||||||||
| 15 | 108 | 90 | 60.5 | 35 | 10 | 4-15 | 241 | 125 |
| 20 | 117 | 100 | 70 | 43 | 11 | 4-15 | 241 | 125 |
| 25 | 127 | 110 | 79.5 | 51 | 12 | 4-15 | 242 | 125 |
| 32 | 140 | 120 | 89 | 63 | 13 | 4-15 | 280 | 160 |
| 40 | 165 | 130 | 98.5 | 73 | 15 | 4-15 | 286 | 160 |
| 50 | 203 | 150 | 120.5 | 92 | 16 | 4-19 | 368 | 200 |
| 65 | 216 | 180 | 139.5 | 105 | 18 | 4-19 | 387 | 200 |
| 80 | 241 | 190 | 152.5 | 127 | 19 | 4-19 | 411 | 250 |
| 100 | 292 | 230 | 190.5 | 157 | 24 | 8-19 | 454 | 250 |
| 125 | 356 | 255 | 216 | 186 | 24 | 8-22 | 455 | 355 |
| 150 | 406 | 280 | 241.5 | 216 | 26 | 8-22 | 541 | 355 |
| 200 | 495 | 345 | 298.5 | 270 | 29 | 8-22 | 651 | 450 |
| 250 | 622 | 405 | 362 | 324 | 31 | 12-25 | 800 | 450 |
| 300 | 698 | 485 | 432 | 381 | 32 | 12-25 | 1231 | 500 |
| 350 | 787 | 535 | 476.5 | 413 | 35 | 12-29 | 1450 | 600 |
| 400 | 914 | 595 | 534.5 | 470 | 37 | 16-29 | 1645 | 600 |
| 450 | - | 635 | 577.5 | 533 | 40 | 16-32 | - | 610 |
| 300Lb | ||||||||
| 15 | 152 | 95 | 66.5 | 35 | 15 | 4-15 | 241 | 125 |
| 20 | 178 | 120 | 82.5 | 43 | 16 | 4-19 | 241 | 125 |
| 25 | 203 | 125 | 89 | 51 | 18 | 4-19 | 283 | 160 |
| 32 | 216 | 135 | 98.5 | 63 | 19 | 4-19 | 320 | 200 |
| 40 | 229 | 155 | 114.3 | 73 | 21 | 4-22 | 322 | 200 |
| 50 | 267 | 165 | 127 | 92 | 23 | 8-19 | 399 | 200 |
| 65 | 292 | 190 | 149 | 105 | 26 | 8-22 | 438 | 250 |
| 80 | 318 | 210 | 168.5 | 127 | 29 | 8-22 | 464 | 280 |
