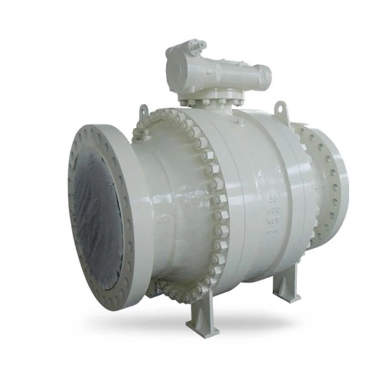

Bolted Bonnet Ball Valve, API 6D, 30 Inch, Class 600 LB, RF
Model Number: MFRS-231205-TMBV-02
Key Specifications / Features
As a trusted API 6D bolted bonnet ball valve supplier in China, we provide top-quality valves to meet your industrial needs. Our three-piece ball valve, crafted from robust carbon steel ASTM A216 WCB, features a substantial size of 30 inches and is designed for Class 600 LB and DN750 (PN100) applications. With a trunnion-mounted design and RF ends, our ball valve ensures reliable and secure flow control.
Detail Information
Valve description: Ball valve, carbon steel, bolted bonnet, three-pieces, Trunnion Mounted
Design: API 6D.
Body: ASTM A216 WCB
Nominal size: 30 Inch.
Nominal class: 600 LB.
End Connection: RF.
OPERATION: GEAR
Test and inspection: API 598.
Product Range：
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
Design: API 6D.
Body: ASTM A216 WCB
Nominal size: 30 Inch.
Nominal class: 600 LB.
End Connection: RF.
OPERATION: GEAR
Test and inspection: API 598.
Product Range：
Body material: Carbon Steel.
Normal diameter: 1/2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Ball valve. |
| Nominal diameter | 1/2 - 32 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API6D. |
| Face to face | ASME B16.10. |
| OPERATION | LEVER, GEAR |
| Connection end | Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
