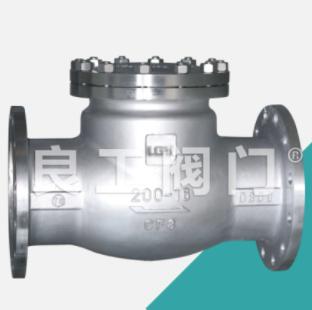

ASTM A351 CF8M Check Valve, 2-12 Inch, 150-2500 LB
Key Specifications / Features
ASTM A351 CF8M Check Valve Manufacturer in China: Check Valve, ASTM A351 CF8M Valve Body, 2-12 Inch, 150-2500 LB, Gasket Flexible Graphite.
Detail Information
Product Name: A351 CF8M Check Valve.
Size: 2 -12 Inch.
Pressure: 150-2500 LB.
Body: A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3 or A351 CF3M.
Cap: A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3 or A351 CF3M.
Valve plate: A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3 or A351 CF3M.
Gasket: Flexible Graphite.
Bolt: A193 B7, A193 B16, A193 B8, A193 B8M, A193 B8, A193 B8M.
Nominal Pressure: 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB or 2500 LB.
Operating temperature: -29~425℃, -29~540℃ or -46~425℃.
Performance parameters
Product specifications
Size: 2 -12 Inch.
Pressure: 150-2500 LB.
Body: A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3 or A351 CF3M.
Cap: A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3 or A351 CF3M.
Valve plate: A216 WCB, A217 WC6, A351 CF8, A351 CF8M, A351 CF3 or A351 CF3M.
Gasket: Flexible Graphite.
Bolt: A193 B7, A193 B16, A193 B8, A193 B8M, A193 B8, A193 B8M.
Nominal Pressure: 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB or 2500 LB.
Operating temperature: -29~425℃, -29~540℃ or -46~425℃.
Performance parameters
| Serial number | Project name | Parameter | |||||
| 1 | Nominal pressurePN（MPa) | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB |
| 2.0 | 5.0 | 10.0 | 15.0 | 25.0 | 42.0 | ||
| 2 | Shell strength test pressure | Nominal pressure at room temperature 1.5 times | |||||
| 3 | High pressure seal test pressure | Nominal pressure at room temperature 1.1 times | |||||
| 4 | Working pressure at room temperature | Press the ASME B16.34 pressure and temperature rating | |||||
Product specifications
| Design standards | Structure length | Flange connection size | Test and inspection | Pressure and temperature reference |
| API6D/ASME B16.34 | ASME B16.10 | ASME B16.5 | API598/API6D | ASME B16.34 |
