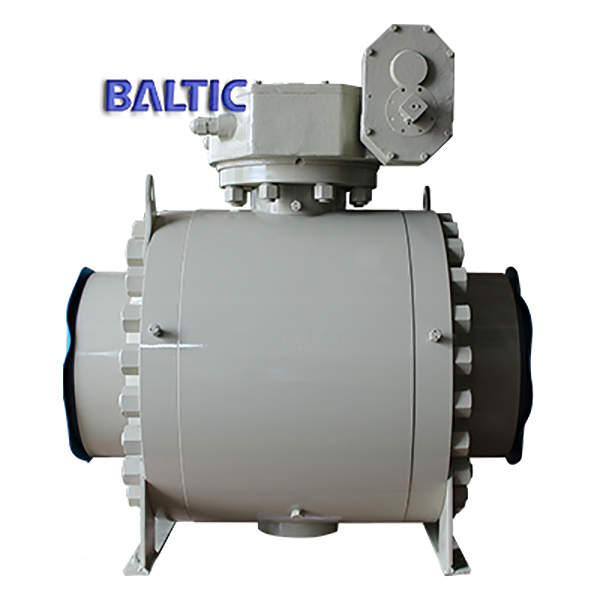

ASTM A350 LF2 Ball Valve, Metal Seated, 28 Inch, Class 600 LB
Model Number: MFRS-231205-TMBV-11
Key Specifications / Features
We present the ASTM A350 LF2 Ball Valve - a testament to fluid control excellence. This metal-seated valve, with a sizable 28-inch build, operates seamlessly at Class 600 LB, meeting API 6D standards for optimal performance. Its DN700 size, PN100 rating, RF end connections, and adherence to Face to Face ASME B16.10 specifications ensure versatility and precision.
Contact Supplier
Detail Information
Valve description:
Name: Metal seat ball valve.
Design: API 6D.
Body: ASTM A182 LF2.
Nominal size: 28 Inch.
Nominal class: Class 600.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
Name: Metal seat ball valve.
Design: API 6D.
Body: ASTM A182 LF2.
Nominal size: 28 Inch.
Nominal class: Class 600.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Metal Seated Ball Valve |
| Nominal diameter | 1/2" - 48" |
| Design temp. | -196℃ - 593℃ |
| Design pressure | class 150 - 2500 |
| Material | A105, LF2, F316, WCB, LCB, CF8M |
| Design standard | API 6D, ASME B16.34 |
| Face to face | ASME B16.10 |
| End | ASME B16.5 / ASME B16.25 |
| Test standard | API 598, ISO 5208 |
| Operation | level, worm gear, electric, pneumatic |
| Application | oil, gas, coal, chemical industries |
| Feature 1 | ball + seat sealing surface coating hardness material |
| Feature 2 | spring support seat ring, stable sealing design |
| Feature 3 | supporting plate (trunnion) construction, light operating torque value, long life |
| Feature 4 | fire safe design |
| Feature 5 | spring Protection |
| Feature 6 | full bore, reduce bore |
