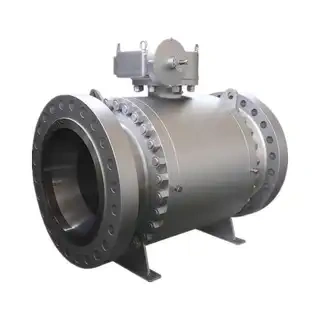

ASTM A350 LF2 Ball Valve, 24 x 20 Inch, Class 600 LB, RF End
Model Number: MFRS-231205-TMBV-04
Key Specifications / Features
Explore our premium API 6D ball valves designed for superior performance. With a robust 24 x 20-inch size, these valves are suitable for Class 600 LB applications. Crafted from high-quality ASTM A350 LF2 material, featuring F6A trim, PEEK seat, and a trunnion-mounted configuration, these valves ensure reliable and efficient operation. The side-entry design, bolted bonnet, and RF ends further enhance their functionality.
Detail Information
Valve Description:
Design Standard: API 6D
Structure: Three pieces forged body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 24 x 20 Inch
Nominal class: 600 LB
Bore Type: Reduced Bore
End Connection: RF
Operation: Gear Box
Body Material: ASTM A350 LF2
Trim Material: A182 F6A, PEEK Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Top Entry for easy on-line maintenance
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -29℃ - +120℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
Design Standard: API 6D
Structure: Three pieces forged body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 24 x 20 Inch
Nominal class: 600 LB
Bore Type: Reduced Bore
End Connection: RF
Operation: Gear Box
Body Material: ASTM A350 LF2
Trim Material: A182 F6A, PEEK Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Top Entry for easy on-line maintenance
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -29℃ - +120℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
