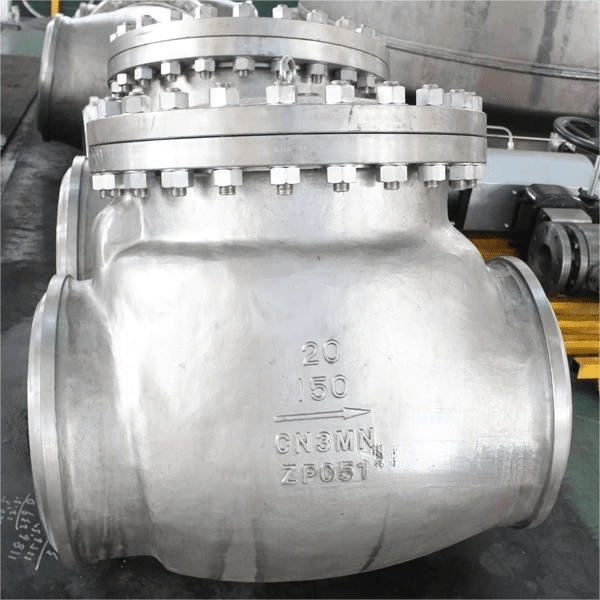

ASTM A217 C5 Swing Check Valve, 20 Inch, API 6D, 300 LB

Name: ASTM A217 C5 Swing Check Valve, 20 Inch, API 6D, 300 LB
SKU: MFRS-230823-CV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover our API 6D Swing Check Valve offerings, featuring swing type functionality. Crafted to meet API 6D standards, these valves boast an ASTM A217 C5 body. With a size of 20 inches (DN500), they are designed for Class 300 LB rating (PN25, PN40, PN50) applications. Ensure efficient flow control with our quality swing check valve solutions.

Request a quote

Detail Information

Type: Swing Check Valve
Design standard: API 6D
Body material: ASTM A217 C5
Nominal diameter: 20 Inch, DN500
Pressure: Class 300 LB
Face to face: ASME B16.10
Test and inspection: API 598
Working temperature: -29℃ - +425℃

Product Range
Body Material: Carbon steel, Stainless steel, Alloy steel
Normal diameter: 1/2-60 Inch, DN15-DN1500
End connection: BW, Flanged
Pressure range: Class 150-2500 LB, PN16-PN420
Working temperature: -196℃ - +560℃
Feature: Can be designed with a Damping Cylinder
