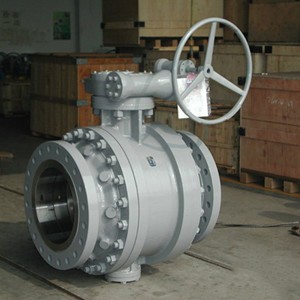

ASTM A216 WCC Top Entry Ball Valve, API 6D, 20 Inch, 600 LB
Model Number: MFRS-240109-TMBV-07
Key Specifications / Features
As a specialized fabricator of top-entry ball valves in Carbon Steel, we take pride in delivering a high-quality solution for your industrial needs. Our 20-inch valve, crafted from durable ASTM A216 WCC, adheres to the stringent API 6D standards, ensuring excellence in performance. With a Class 600 LB rating, DN500 size, and PN100 pressure rating, this ball valve is designed for robust and reliable operation.
Detail Information
Standard: API 6D.
Body Material: ASTM A216 WCC.
Size: 20 Inch, DN500.
Pressure: Class 600 LB, PN100.
End Connection: RF.
Face to face: ASME B16.10.
Working Temperature: -29℃ - +200℃.
Test and Inspection: API 598.
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2 - 60 Inch (DN50 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 lbs - 2500 lbs (PN16 - PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃ - +200℃.
Features: One Piece Type Body, Emergency Sealant Injection, Low Emission Packing, Fire Safe, Anti-Static and Anti-Blowout Stem, Valve Seat Function DBB, Optional Extended Bonnet, Cavity Pressure Self-Relief.
Body Material: ASTM A216 WCC.
Size: 20 Inch, DN500.
Pressure: Class 600 LB, PN100.
End Connection: RF.
Face to face: ASME B16.10.
Working Temperature: -29℃ - +200℃.
Test and Inspection: API 598.
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2 - 60 Inch (DN50 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 lbs - 2500 lbs (PN16 - PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃ - +200℃.
Features: One Piece Type Body, Emergency Sealant Injection, Low Emission Packing, Fire Safe, Anti-Static and Anti-Blowout Stem, Valve Seat Function DBB, Optional Extended Bonnet, Cavity Pressure Self-Relief.
