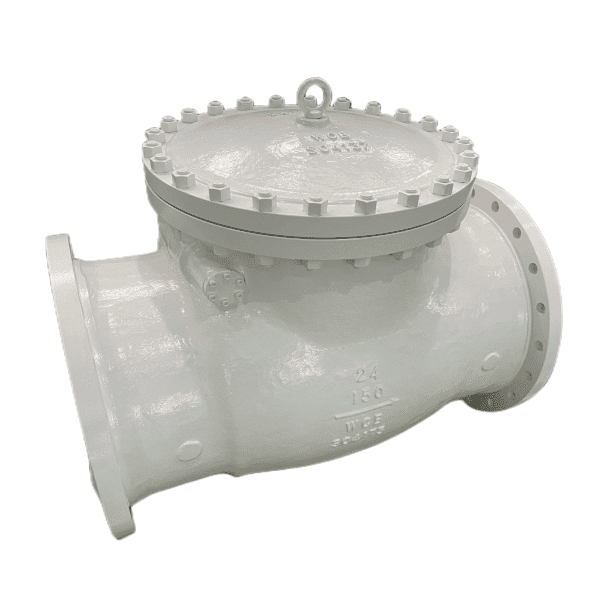

ASTM A216 WCB Swing Check Valve, BS 1868, 24 Inch, 150 LB

Name: ASTM A216 WCB Swing Check Valve, BS 1868, 24 Inch, 150 LB
SKU: MFRS-230821-CV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Looking for top-quality Non-Return Swing Check Valves? Trust our expertise. This is a 24-inch DN600 Non-Return Swing Check Valve with a design pressure of 150 LB (PN20). It adheres to the industry standards of BS 1868 and API 6D. Constructed from Carbon Steel ASTM A216 WCB, it features RF Flanged Ends for secure installation and reliable operation.

Request a quote

Detail Information

Detail Infomation
Non-Return Swing Check Valves

Nominal Diameter: 24 Inch, DN600
Pressure: Class 150 LB, PN20
Design Standard: API 6D, BS 1868
Body Material: Carbon Steel ASTM A216 WCB
End Connection: Raised Face Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Temperature: -29 - 429 ℃

Product Range

Size: NPS 2-36 Inch
Pressure: Class 150-2500 LB
Certification: ISO 9001, ISO 14001, ISO 18001, TS, CE, API
