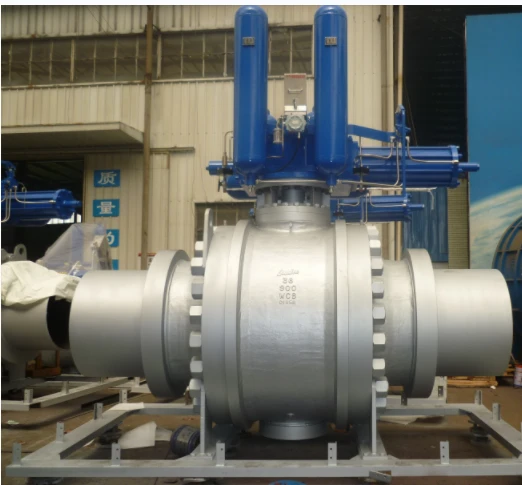

ASTM A216 WCB Ball Valve, API 6D, 20 Inch, Class 150 LB

Name: ASTM A216 WCB Ball Valve, API 6D, 20 Inch, Class 150 LB
SKU: MFRS-230908-TMBV-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Explore our Cast Steel Ball Valve - an API 6D compliant solution. Featuring ASTM A216 WCB construction, a 2PC body design, and Class 150 LB (PN20) rating, this 20-inch (DN500) valve comes with a bolted bonnet, gear operation, F6A trim, and RF compatibility.

Request a quote

Detail Information

Description:
Design Standard: API 6D
Structure: Two PC body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 20 Inch, DN500
Nominal class: 150 LB, PN20
Body Material: ASTM A216 WCB
Trim Material: ASTM A182 F6A, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection
