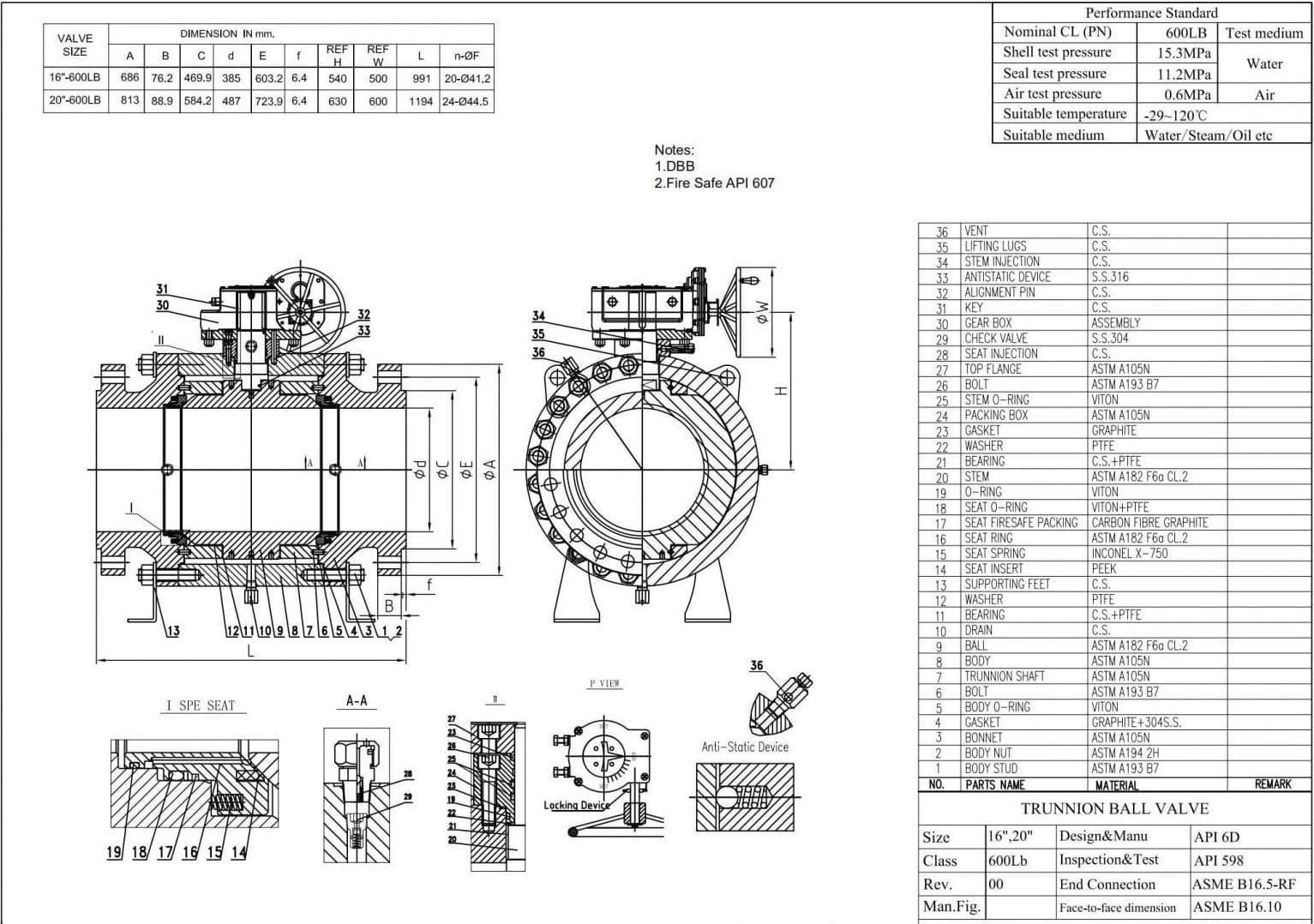

API 6D Trunnion Mounted Ball Valve, ASTM A105N, 20IN, 600 LB
Key Specifications / Features
Presenting a 20-inch trunnion mounted ball valve, designed to meet the esteemed API 6D standard and accommodate a 600 LB capacity. Crafted from forged steel, its body boasts an ASTM A105N composition and showcases an RF Flanged connection. This valve proves optimal for diverse industrial applications, delivering versatility and performance.
Request a quote
Detail Information
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Bore Type: Full Bore
Operation: Gear
Body Material: ASTM A105N
Trim Material: ASTM A182 F6A, PEEK
Face to face: ASME B16.10
Nominal size: 20 Inch
Nominal class: 600 LB
End Connection: RF Flanged
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End connection: RF, RTJ, BW, HUB
