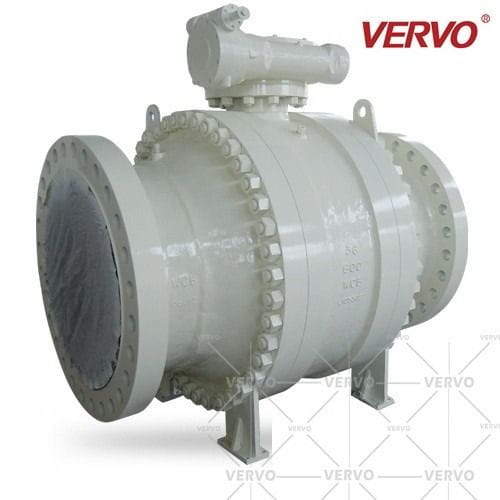

API 6D Trunnion Ball Valve, ASTM A216 WCB, 36 Inch, 600 LB
Model Number: MFRS-230818-BV-01
Key Specifications / Features
Presenting our range of industry-standard API 6D Trunnion Mounted Ball Valves, designed to deliver exceptional performance. These valves feature a body crafted from ASTM A216 WCB material, ensuring durability and reliability. With a size of 36 inches (DN900), they operate efficiently under Class 600 LB and PN100 pressure ratings. The valves come equipped with RTJ Flange end connections, providing secure and leak-free connections for various applications.
Detail Information
Detail Infomation
Worm Operated Trunnion Ball Valve
Design Standard: API 6D
Nominal Diameter: 36 Inch, 900MM, DN900
Pressure: Class 600 LB, PN100
Body Material: ASTM A216 WCB
End Connection: RTJ Flange
Face To Face: ASME B16.10
Test And Inspection: API 598
Product Range
Size: 2 - 48 Inch, DN50-DN1200
Pressure Rating: Class 150-2500 LB, PN20-PN420
Fire safe design according to API 6FA, API 607
Face-to-face: API 6D, ASME B16.10
