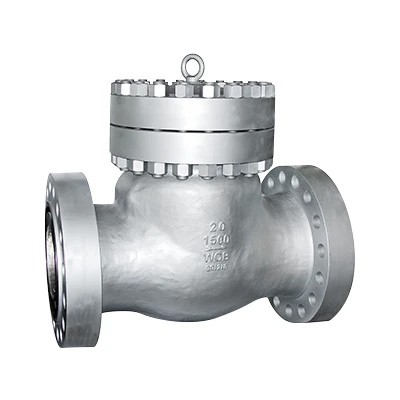

API 6D Swing Check Valve, ASTM A216 WCB, 20 Inch, 300 LB
Model Number: MFRS-230907-CV-02
Key Specifications / Features
Experience the excellence of our API 6D swing check valve, designed for Class 300 LB and PN50 operations. With a substantial 20-inch (DN500) size, it features a robust ASTM A216 WCB body and a secure bolted bonnet. Weighing in at 1960 kg, this valve offers a full bore and a durable ring A105+STL seat for unparalleled performance.
Detail Information
Design: API 6D
Body: Cast Steel ASTM A216 WCB
Seat: Ring A105+STL
Face to Face Standard: ANSI B16.10
End Flange: ASME B16.5 / 16.47
Test: API 598
Pressure: Class 300 LB, PN50
Size: 20 Inch, DN500
Weight: 1960 kg
Hinge Pin: ASTM A216 WCB
Hinge Pin: ASTM A182 F6a
Cover: ASTM A216 WCB
Eye Bolt: Carbon Steel
Plug: Carbon Steel
Bearing Bracket: ASTM A216 WCB
Spring Washer: Carbon Steel
Hex Bolt: Carbon Steel
Gasket: SS 304+Graphite
Cover Bolt: ASTM A193 B7
Nut: ASTM A194 2H
Disc: WCB+13Cr
Disc Washer: ASTM A276 410
Disc Nut Pin: Stainless Steel
Disc Nut: Stainless Steel
Port: Full Bore
Bonnet: Bolted Bonnet
Feature: Swing Check Disc, Bolted Bonnet, All Seat Rings are Seal Welded as Standard.
