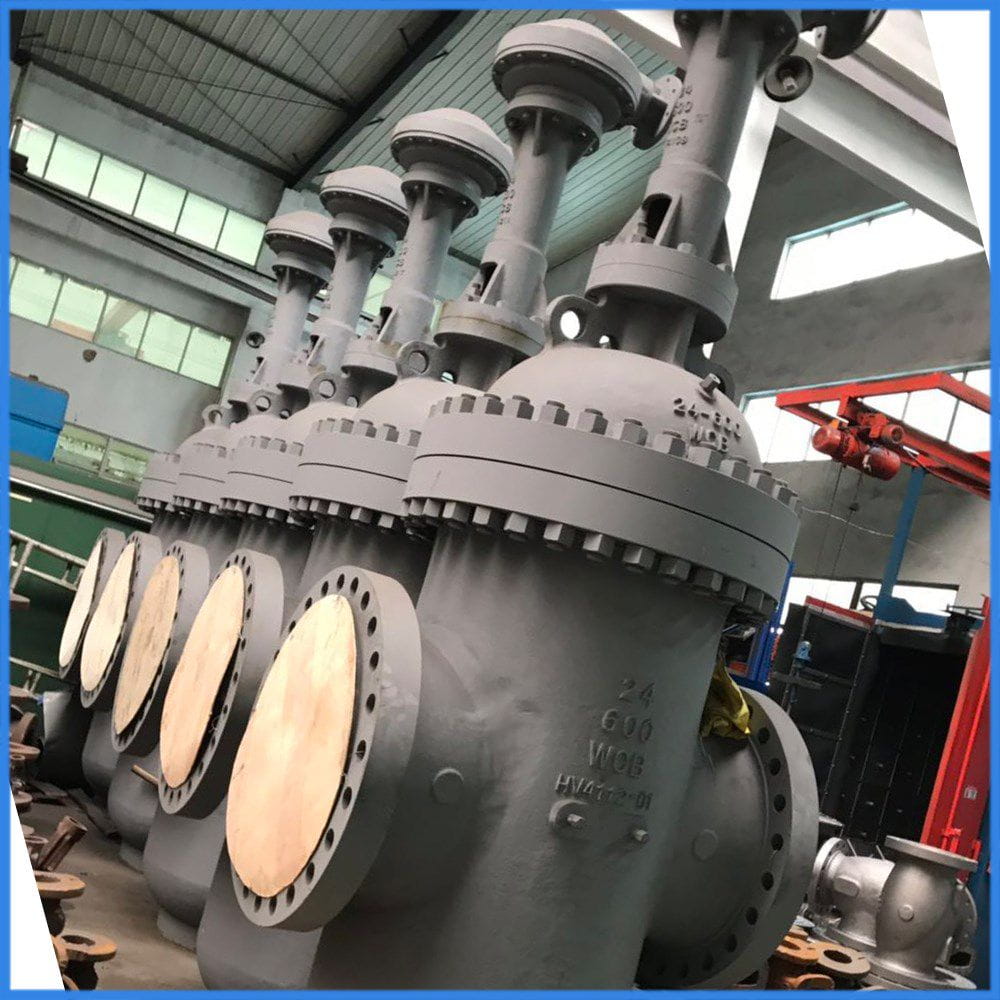

API 600 Wedge Gate Valve, ASTM A216 WCB, 24 Inch, 150 LB, RF
Model Number: MFRS-230817-GTV-01
Key Specifications / Features
Delivering Wedge Gate Valves in compliance with ASTM A216 WCB and API 600 standards. Our offerings encompass a substantial 24 Inch size, catering to 150 LB applications. With a Standard Bore design, these valves come with a robust Bolted Bonnet and feature OS&Y construction. The Flexible Wedge, Renewable Seat, and RF configuration enhance their performance. Fitted with a Handwheel Opt for convenient operation.
Detail Information
Product Item: Wedge Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 24 Inch
Nominal class: 150 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Handwheel
Body Material: ASTM A216 WCB
Trim Material: 1Cr13+STL, No.8
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat
Product Range
Body material: Carbon Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator
