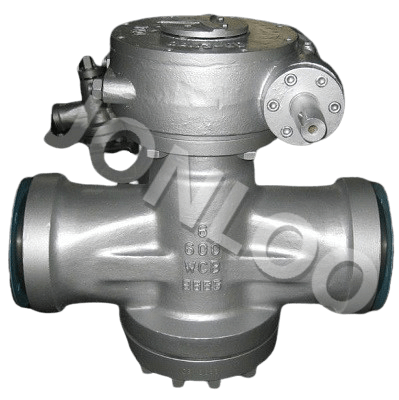

API 599 Lubricated Plug Valve, ASTM A216 WCB, 32 Inch, 600 LB
Model Number: MFRS-240111-Other-01
Key Specifications / Features
Introducing our Lubricated Plug Valve from the mill, crafted to meet industry standards including API 599 and API 6D. Manufactured with precision, this valve is composed of robust Carbon Steel ASTM A216 WCB, ensuring durability and reliability. With an impressive 32-inch size, it is optimized for Class 600 LB applications, featuring a DN800 size and PN100 pressure rating for robust performance.
Detail Information
Design standard: API 599, API 6D.
Body material: ASTM A216 WCB.
Nominal diameter: 32 Inch, DN800
Pressure: Class 600 LB, PN100
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃ - +425℃.
Mode of operation: Gearbox.
Test and inspection: API 598 API 6D.
Product Range
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2 Inch - 16 Inch (DN15 - DN400).
End connection: BW, Flanged.
Pressure range: 150 LB - 600 LB(PN16 - PN100).
Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -29℃ - +180℃.
Body material: ASTM A216 WCB.
Nominal diameter: 32 Inch, DN800
Pressure: Class 600 LB, PN100
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃ - +425℃.
Mode of operation: Gearbox.
Test and inspection: API 598 API 6D.
Product Range
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2 Inch - 16 Inch (DN15 - DN400).
End connection: BW, Flanged.
Pressure range: 150 LB - 600 LB(PN16 - PN100).
Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -29℃ - +180℃.
