API 594 Swing Check Valve, ASTM A216 WCB, 24 Inch, 150 LB

Name: API 594 Swing Check Valve, ASTM A216 WCB, 24 Inch, 150 LB
SKU: MFRS-230816-CV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover our Swing Check Valve, a testament to reliability and functionality. Crafted to adhere to the industry standards of BS 1868 and API 594, this valve boasts a body made from robust ASTM A216 WCB material. Its trim features 1Cr13+STL, No.8, ensuring durability and performance. With a 24-inch size and a CL 150 LB rating, this valve is designed to cater to a range of applications. The RF end connection further facilitates ease of installation. Trust in the quality of our Swing Check Valve to enhance your systems with efficient fluid control.

Request a quote

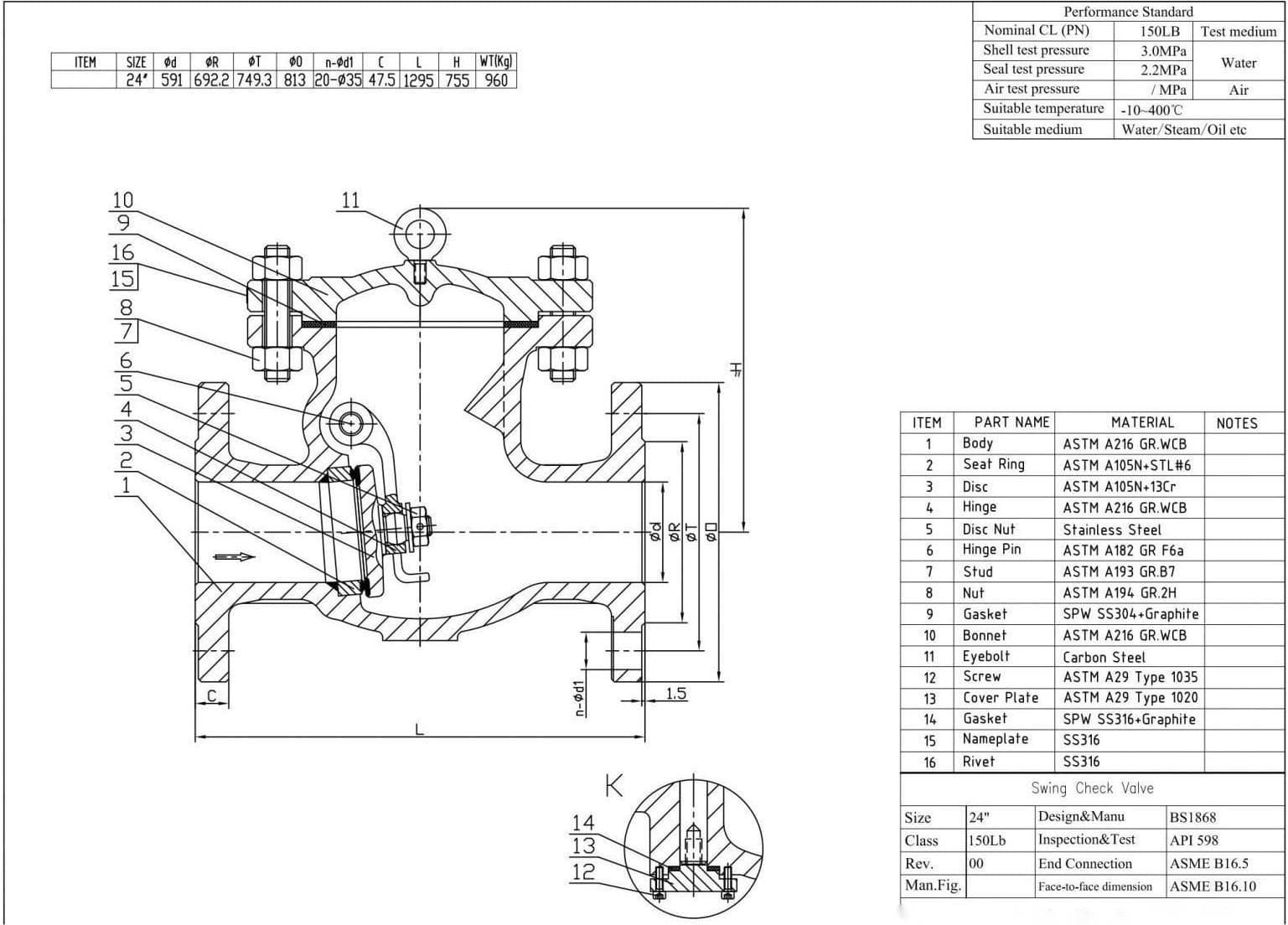

Detail Information

Product Item: Swing Check Valve
Model No.: 24S1RWCB08
Design Standard: BS 1868, API 594
Structure: Bolted Bonnet, Swing type
Body Material: ASTM A216 WCB
Trim Material: 1Cr13+STL, No.8
Nominal size: 24 Inch
Nominal class: 150 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: /
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Swing Disc, Renewable Seat

Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 32 Inch (DN50 - DN800)
Pressure range: 150 - 2500 LB
Working temperature: -29℃ - +400℃
Operation: /
End connection: RF, RTJ, BW
