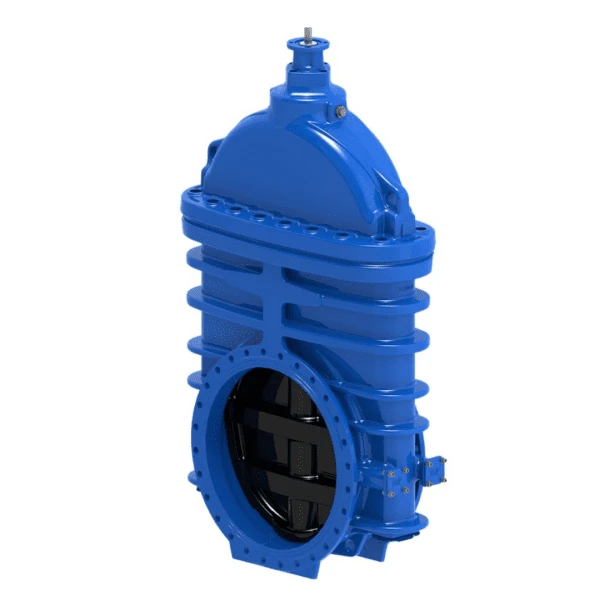

40 Inch Gate Valve, BS 5163, EN 558-14, EN 1074, DN1000, PN16
Model Number: MFRS-230816-GV-01
Key Specifications / Features
Explore a dependable source for premium EN 558-14 resilient gate valves. Our offerings are meticulously engineered for superior longevity and top-tier performance. Accessible in a DN1000 size and PN16 pressure rating, they align seamlessly with EN 1074 standards. With a diameter of 40 inches and bearing a Class 150 LB classification, they satisfy the requisites of BS 5163 specifications. Forged from durable ductile iron GGG50 material, these gate valves ensure enduring dependability. Incorporated NBR and EPDM seats guarantee impeccable sealing. Effortlessly operate them using the provided handwheel. Investigate our array of EN 558-14 resilient gate valves, assuring excellence across diverse applications.
Contact Supplier
Detail Information
Design Standard: BS 5163, EN 558-14, EN 1074
Structure: Resilient Seat
Body Material: GGG50
Trim Material: GGG50+NBR/EPDM
Nominal size: 40 Inch, DN1000
Nominal class: 150 LB, PN16
End Connection: Flanged End, EN 1092, PN16, ISO 7005-2
Operation: /
Face to face: EN 558 Table 2 Basic Series 14, DIN 3202 - F4
Test and inspection: EN 12266-1, DIN 3230
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, Resilient seated gate valve for water and waste water to max. 70° and max 10% solid matter, WRAS approved materials available
Product Range:
Body material: Cast Iron, Ductile Iron
Normal diameter: 2 - 16 Inch (DN50 - DN400)
Pressure range: PN10, PN16
Working temperature: up to 70℃
Suitable Service: water, sewage, or other neutral liquids
End connection: Flanged
