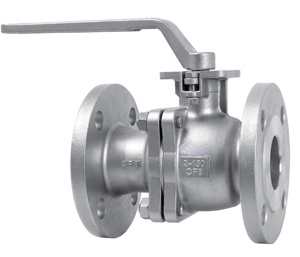

2PCS Body Cast Floating Ball Valve
Key Specifications / Features
Cast Floating Ball Valve Manufacturer in China: 2PCS Body Cast Floating Ball Valve, ASTM A105N, 1/2 - 10 Inch, Class 150 - 1500 LB, ASME B16.34, API 6D.
Detail Information
Body material: ASTM A105N, ASTM A182 F316, ASTM A350 LF2
Size: 1/2 Inch - 10 Inch
Class: 150 - 2500 LB
2PC/3PC Body Forged Steel Body
Floating Ball, Full & Reduced Bore
Anti-static Device
Blow-out Proof Stem
Fire Safe Design
Low Emission
Design: ASME B16.34/API 6D/BS EN ISO 17292(BS5351)
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5
BW End: ASME B16.25
Test: API 598/BS EN 12266(BS6755)
Fire Safe Test: API 607/API 6FA
Special: NACE MR0175
Size: 1/2 Inch - 10 Inch
Class: 150 - 2500 LB
2PC/3PC Body Forged Steel Body
Floating Ball, Full & Reduced Bore
Anti-static Device
Blow-out Proof Stem
Fire Safe Design
Low Emission
Design: ASME B16.34/API 6D/BS EN ISO 17292(BS5351)
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5
BW End: ASME B16.25
Test: API 598/BS EN 12266(BS6755)
Fire Safe Test: API 607/API 6FA
Special: NACE MR0175
| MATERIAL SPECIFICATIONS | |||||
| NO. | PART | WCB/ENP | WCB/316 | CF8M/316 | LCC/316 NACE |
| 1 | Body | ASTM A216-WCB | ASTM A216-WCB | ASTM A351-CF8M | ASTM A351-LCC |
| 2 | Adapter | ASTM A216-WCB | ASTM A216-WCB | ASTM A351-CF8M | ASTM A351-LCC |
| 3 | Ball | ASTM A105N/ENP | ASTM A182-F316 | ASTM A182-F316 | ASTM A182-F316 |
| 4 | Seat Ring | PTFE | PTFE | PTFE | PTFE |
| 5 | Stem | AISI 4140/ENP | ASTM A182-F51 | ASTM A182-F51 | ASTM A182-F51 |
| 6 | Gland Ring | ASTM A276-410 | ASTM A276-316 | ASTM A276-316 | ASTM A276-316 |
| 7 | O-ring Box | ASTM A276-410 | ASTM A276-316 | ASTM A276-316 | ASTM A276-316 |
| 8 | Body Stud | ASTM A193-B7 | ASTM A193-B7 | ASTM A193-B8 | ASTM A320-L7M |
| 9 | Body Nut | ASTM A194-2H | ASTM A194-2H | ASTM A194-8 | ASTM A194-7M |
| 10 | Steel Ball | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| 11 | Antistatic Spring | Inconel X-750 | Inconel X-750 | Inconel X-750 | Inconel X-750 |
| 12 | Antistatic Spring | Inconel X-750 | Inconel X-750 | Inconel X-750 | Inconel X-750 |
| 13 | Dish Spring | Alloy Steel | Alloy Steel | Alloy Steel | Alloy Steel |
| 14 | Thrust Washer | PTFE | PTFE | PTFE | PTFE |
| 15 | *Gasket | Graphite | Graphite | Graphite | Graphite |
| 16 | *Packing | Graphite | Graphite | Graphite | Graphite |
| 17 | *O-ring | Viton | Viton | Viton | Viton |
| 18 | *O-ring | Viton | Viton | Viton | Viton |
| 19 | *O-ring | Viton | Viton | Viton | Viton |
| 20 | Lever Head | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| 21 | Lever Pipe | CS Zinc Plated | CS Zinc Plated | CS Zinc Plated | CS Zinc Plated |
| 22 | Nut | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| 23 | Position Screw | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| 24 | Screw | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| 25 | Screw | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| 26 | Washer | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| 27 | Key | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| 28 | ** Retainer | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| * Recommened Spare Parts ** Locking Washers for 1/2~1-1/2 Retainer for 2 & Larger |
|||||
| Full Bore Class 150 | |||||
| Size in | d mm | L mm | H mm | W mm | Weight Kg |
| 1/2 | 13 | 13 | 85 | 160 | 160 |
| 3/4 | 19 | 19 | 93 | 160 | 160 |
| 1 | 25 | 25 | 112 | 180 | 180 |
| 1-1/2 | 38 | 38 | 132 | 240 | 240 |
| 2 | 51 | 51 | 138 | 350 | 350 |
| 2-1/2 | 62 | 62 | 155 | 400 | 400 |
| 3 | 76 | 76 | 175 | 400 | 400 |
| 4 | 102 | 102 | 200 | 450 | 450 |
| 5 | 125 | 125 | 246 | 650 | 650 |
| 6 | 152 | 152 | 263 | *300 | *300 |
| 8 | 203 | 203 | 299 | *400 | *400 |
| 10 | 254 | 254 | 343 | *400 | *400 |
| 12 | 303 | 303 | 409 | *600 | *600 |
| Full Bore Class 300 | |||||
| Size in | d mm | L mm | H mm | W mm | Weight Kg |
| 1/2 | 13 | 140 | 85 | 160 | 2.5 |
| 3/4 | 19 | 152 | 93 | 160 | 4 |
| 1 | 25 | 165 | 112 | 180 | 5 |
| 1-1/2 | 38 | 190 | 132 | 240 | 10 |
| 2 | 51 | 216 | 138 | 400 | 13.5 |
| 2-1/2 | 62 | 241 | 155 | 400 | 21 |
| 3 | 76 | 283 | 175 | 450 | 30 |
| 4 | 102 | 305 | 200 | 500 | 50 |
| 5 | 125 | 381 | 246 | 550 | 65 |
| 6 | 152 | 403 | 263 | *300 | 122 |
| 8 | 203 | 502 | 299 | *400 | 150 |
| 10 | 254 | 568 | 501 | *400 | 230 |
| Reduce Bore Class 150 | ||||||
| Size in | d mm | D mm | L mm | H mm | W mm | Weight Kg |
| 3/4*1/2 | 13 | 19 | 117 | 85 | 160 | 2.5 |
| 1*3/4 | 19 | 25 | 127 | 93 | 160 | 4 |
| 1-1/2*1 | 25 | 38 | 165 | 112 | 180 | 6.2 |
| 2*1-1/2 | 38 | 51 | 178 | 132 | 240 | 8.5 |
| 2-1/2*2 | 51 | 62 | 191 | 138 | 350 | 13 |
| 3*2 | 51 | 76 | 203 | 138 | 350 | 16 |
| 4*3 | 76 | 102 | 229 | 175 | 400 | 26 |
| 6*4 | 102 | 152 | 394 | 200 | 450 | 55 |
| 8*6 | 152 | 203 | 457 | 263 | *300 | 83 |
| 10*8 | 203 | 254 | 533 | 299 | *400 | 122 |
| Reduce Bore Class 300 | ||||||
| Size in | d mm | D mm | L mm | H mm | W mm | Weight Kg |
| 3/4*1/2 | 13 | 19 | 152 | 85 | 160 | 2.5 |
| 1*3/4 | 19 | 25 | 165 | 93 | 160 | 3.5 |
| 1-1/2*1 | 25 | 38 | 190 | 112 | 180 | 8 |
| 2*1-1/2 | 38 | 51 | 216 | 132 | 240 | 12 |
| 2-1/2*2 | 51 | 62 | 241 | 138 | 400 | 19 |
| 3*2 | 51 | 76 | 283 | 138 | 400 | 22 |
| 4*3 | 76 | 102 | 305 | 175 | 450 | 38 |
| 6*4 | 102 | 152 | 403 | 200 | 500 | 75 |
| 8*6 | 152 | 203 | 502 | 263 | *300 | 130 |
| 10*8 | 203 | 254 | 568 | 299 | *400 | 200 |
| * Gear Operated | ||||||
