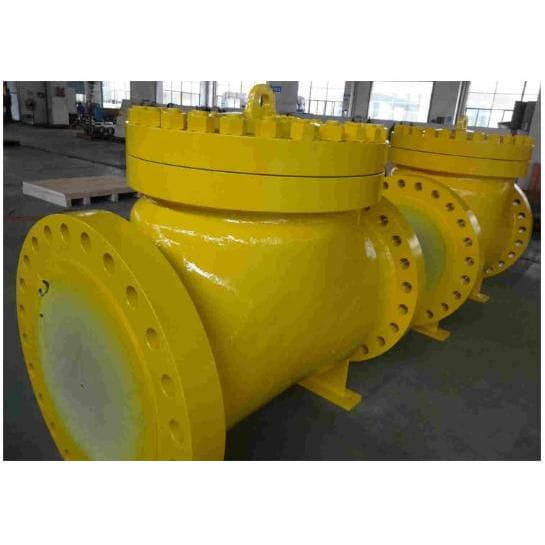

20 Inch Bolted Bonnet Swing Check Valve, API 6D, 150 LB

Name: 20 Inch Bolted Bonnet Swing Check Valve, API 6D, 150 LB
SKU: MFRS-230817-CV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Experience excellence with our API 6D Bolted Bonnet Swing Check Valve offerings. These Swing Type Check Valves are meticulously designed, featuring a robust body crafted from ASTM A216 WCB material. With a substantial 20-inch size and a pressure rating of 150 LB, these valves are engineered to perform effectively. They adhere to industry-leading design standards, including API 600, API 6D, BS 1868, and ASME B16.34, ensuring reliability and high performance across various applications.

Request a quote

Detail Information

Detail Infomation
API 6D Bonnet Type Swing Check Valve
Design Standard: API 600, API 6D, BS 1868, ASME B16.34
Nominal Diameter: 20 Inch, DN500
Pressure: Class 150 LB, PN20Body Material: ASTM A216 WCB
Face To Face: ASME B16.10, API 6D, BS EN 558
Test And Inspection: ISO 5208, API 600, BS 6755
Feature: Bolted Cover

Product Range

Size: NPS 2 - 36 Inch
Pressure: Class 150-2500 LB
Design: API 600, API 6D, BS EN 13709, ASME B16.34
Body Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C12, ASTM A217 C5, CF8, CF8M, CF3, CF3M
Ranges of Materials: nine grades of carbon, low alloy and stainless steels, other grades of alloy and stainless steel
End Connection: ASME B16.5, ASME B16.47, ASME B1.20.1, ASME B16.11,DIN 2453-2551, ASME B16.25
