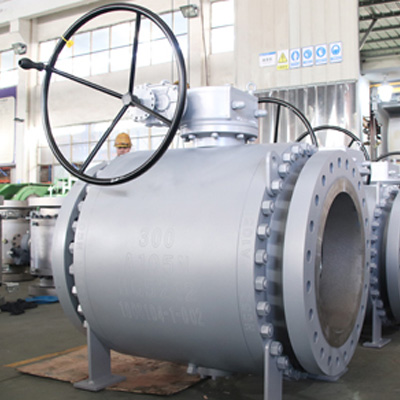

Raised Face Ball Valve, ASTM A216 WCB, 24 IN, API 6D, CL300
Key Specifications / Features
Raised Face Ball Valve Provider: Cast Steel RF Ball Valves, ASTM A216 WCB, DN600, PN50, 24 Inch, CL300, API 6D, Raised Face ASME B16.10, Bare Shaft Operation.
Detail Information
Cast Steel Ball Valve, ASTM A216 WCB Body Material, API 6D Design Standard, DN600, PN50, Raised Face End.
Design Standard: API 6D.
Body Material: ASTM A216 WCB.
Nominal Diameter: 24 Inch.
Pressure: Class 300 LB.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature:-29℃ - +200℃.
Mode of Operation: Bare Shaft.
Test and Inspection: API 6D, API 598.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2-60 Inch (DN50-DN1500).
End Connection: BW, Flanged.
Pressure Range: Class 150-2500 LB (PN16-PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro-Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃ - +200℃.
Design Standard: API 6D.
Body Material: ASTM A216 WCB.
Nominal Diameter: 24 Inch.
Pressure: Class 300 LB.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature:-29℃ - +200℃.
Mode of Operation: Bare Shaft.
Test and Inspection: API 6D, API 598.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2-60 Inch (DN50-DN1500).
End Connection: BW, Flanged.
Pressure Range: Class 150-2500 LB (PN16-PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro-Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃ - +200℃.
