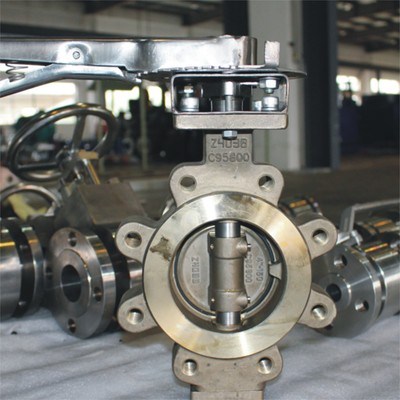

Lug Eccentric Butterfly Valve, 2-64 Inch, 150-600 LB
Key Specifications / Features
Lug Eccentric Butterfly Valve Provider: Lug Type Eccentric Butterfly Valves, 2-64 Inch, 50-1600mm, Class 150-600 LB, PN10-PN100, Manual, Pneumatic, Electric, Hydraulic.
2 Inch Butterfly Valve
Class 150 LB Butterfly Valve
Lug Butterfly Valve
50mm Butterfly Valve
PN10 Butterfly Valve
Eccentric Butterfly Valve
Class 600 LB Butterfly Valve
64 Inch Butterfly Valve
1600mm Butterfly Valve
PN100 Butterfly Valve
Manual Butterfly Valve
Pneumatic Butterfly Valve
Electric Butterfly Valve
Hydraulic Butterfly Valve
Detail Information
Lug Eccentric Butterfly Valve
Med offers a comprehensive range of Triple-offset Butterfly Valves in a variety of pressure classes, body styles and materials to address critical process requirements in diverse industries such as hydrocarbon, power, chemicals, fertilizer, etc. The product range covers valves in ASME classes up to 600, in sizes up to 64 Inch ± (1600 mm), in carbon steel, stainless steel, alloy steels, suitable for temperatures as high as 538 ℃ (1000 Deg F). Based on customer requirements valves in higher pressure classes, larger sizes and other materials are offered. The range comprises valves for cryogenic services also. The metal-seated valves conform to API 609. Triple-offset Butterfly Valves are truly bi-directional and offer high-integrity sealing. All machining operations are carried out on 5-axis machining centers. Customized welding machines are also employed for the manufacture of these products.
Standards Compliance and Design Features
Lockable Lever.
Site maintenance.
Ease of automation.
Positive tight shut-off.
Optional top flanges to ISO 5211.
Qualified for both gaseous and liquid services.
Broad line of body and trim materials for a variety of medium services.
ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202.
Materials: Cast Carbon Steel, Low Temp. Carbon Steel, Stainless Steel, Alloy Steel, duplex steel and etc.
Temperature: -196 ℃ - 550 ℃.
Pressure Ratings: ANSI Class 150-600 LB, PN10-PN100.
Size Ranges: 2-64 Inch, 50-1600mm (Larger sizes upon request).
Ends Connections: Wafer, Lugged, Double Flanged, Butt Weld or Grooved.
Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic.
Med offers a comprehensive range of Triple-offset Butterfly Valves in a variety of pressure classes, body styles and materials to address critical process requirements in diverse industries such as hydrocarbon, power, chemicals, fertilizer, etc. The product range covers valves in ASME classes up to 600, in sizes up to 64 Inch ± (1600 mm), in carbon steel, stainless steel, alloy steels, suitable for temperatures as high as 538 ℃ (1000 Deg F). Based on customer requirements valves in higher pressure classes, larger sizes and other materials are offered. The range comprises valves for cryogenic services also. The metal-seated valves conform to API 609. Triple-offset Butterfly Valves are truly bi-directional and offer high-integrity sealing. All machining operations are carried out on 5-axis machining centers. Customized welding machines are also employed for the manufacture of these products.
Standards Compliance and Design Features
Lockable Lever.
Site maintenance.
Ease of automation.
Positive tight shut-off.
Optional top flanges to ISO 5211.
Qualified for both gaseous and liquid services.
Broad line of body and trim materials for a variety of medium services.
ISO 5752, BS 5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN 3202.
Materials: Cast Carbon Steel, Low Temp. Carbon Steel, Stainless Steel, Alloy Steel, duplex steel and etc.
Temperature: -196 ℃ - 550 ℃.
Pressure Ratings: ANSI Class 150-600 LB, PN10-PN100.
Size Ranges: 2-64 Inch, 50-1600mm (Larger sizes upon request).
Ends Connections: Wafer, Lugged, Double Flanged, Butt Weld or Grooved.
Actuations: Manual, Pneumatic, Electric, Hydraulic (Counterweight) & Electro-hydraulic.
