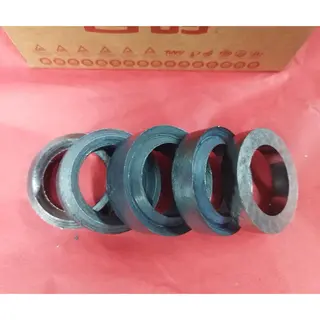

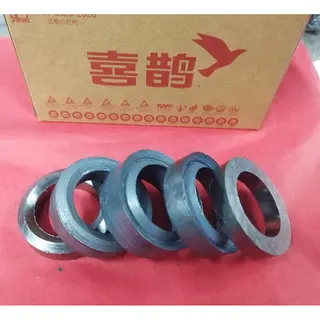

Orbit Ball Valve Packing Set, ID 32mm * OD 48mm, Low-Emission

The Orbit Ball Valve Packing Set Plant offers a high-quality packing set designed for 2500 LB Orbit Ball Valves, featuring an inner diameter of 32mm and an outer diameter of 48mm. This set includes five rings, each crafted with a minimum graphite purity of 99%, ensuring low emissions and superior performance. This packing set is ideal for maintaining the integrity and efficiency of ball valves in demanding industrial applications.

Product Name: Class 2500 LB Orbit Ball Valve Packing, Low Emission Packing Set
Model: MAX900
Size: ID 32mm * OD 48mm * 5 Rings
Material Properties:
Graphite Purity: ≥99%
Metal Wire Content: 20% (Material: Inconel 600)
Sulfur Content: ≤50PPM
Chlorine Content: ≤20PPM
Application Conditions: -50°C to +300°C

Operating Parameters

Speed: 2 m/s
Temperature Range: -200°C to +400°C (for most media), -200°C to +550°C (for steam)
pH Value: 0 to 14
Pressure: 25 MPa
Media: Suitable for most chemical substances (solvents, hydrocarbons, acids, alkalis, steam, alcohol, oil)
Certifications/Licenses: TA-Luft, ISO 15848, API 589 (Fire Safe)
Except for strong oxidizing acids, such as sulfuric acid and nitric acid.

Product Introduction

The orbit ball valve stem operates with a combination of rotation and lifting motion.
High pressure of 2500 LB results in significant torque.
Customers require low torque, excellent high-pressure sealing, and reliable performance under alternating high and low temperatures.
To meet these requirements, we have adopted an upper and lower V-shaped structure to reduce friction while ensuring sufficient sealing stress.
The graphite material has been specially reinforced to maintain higher strength and buffering characteristics.
