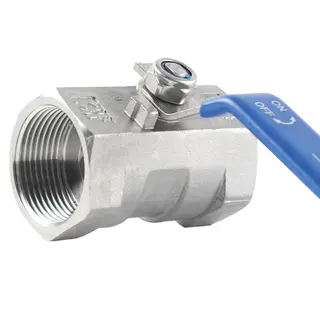

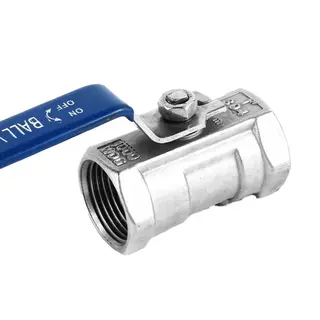

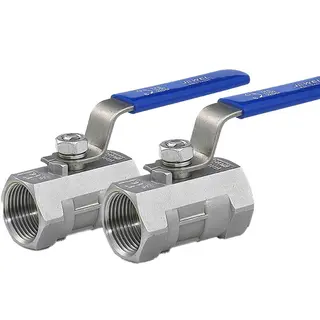

One Piece Ball Valve, ASME B16.34, A351 CF8M, 1 IN, 1000 WOG
Key Specifications / Features
Our Stainless Steel One Piece Ball Valve adheres to ASME B16.34 standards and features an ASTM A351 CF8M body with a stainless steel SS 304 ball. This 1-inch valve is rated for 1000 WOG (Water, Oil, Gas) pressure, ensuring reliable performance in various industrial applications. It is lever-operated and comes with threaded ends for easy installation and maintenance.
Detail Information
Product Name: One Piece Ball Valve
Design Standard: ASME B16.34
Body Material: ASTM A351 CF8M
Ball Material: Stainless Steel SS 304
Size: 1 Inch, DN25
Pressure: 1000 WOG
Operation: Lever
End Connection: Threaded
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Product Range
Material: Stainless Steel SS 201, SS 304
Nominal Pressure: 1.6-6.4 MPa, PN16-PN64, Class 150-400 LB
Connection Method: Internal Thread
Suitable Medium: Water, Oil, Gas, Some Corrosive Liquids
Operating Temperature Range: -20 °C to 232 °C
|
No. |
Part Name |
Material |
|
1 |
Seal Ring |
PTFE (Teflon) |
|
2 |
Ball |
Stainless Steel SS 304 |
|
3 |
Gasket |
PTFE (Teflon) |
|
4 |
Valve Cover |
ASTM A351 CF8M |
|
5 |
Valve Body |
ASTM A351 CF8M |
|
6 |
Valve Stem |
Stainless Steel SS 304 |
|
7 |
Thrust Washer |
PTFE (Teflon) |
|
8 |
Packing |
PTFE (Teflon) |
|
9 |
Packing Nut |
Stainless Steel SS 304 |
|
10 |
Washer |
Stainless Steel SS 304 |
|
11 |
Stem Nut |
Stainless Steel SS 201 |
|
12 |
Handle Cover |
Plastic |
|
13 |
Handle |
Stainless Steel SS 201 |
