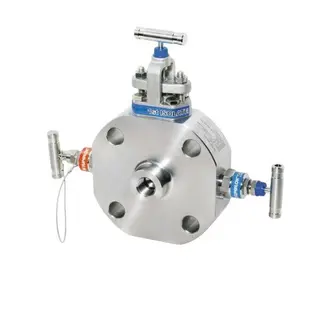

Monoflange Valve, Carbon/Stainless/Duplex Steel, 1/2-2 Inch
Key Specifications / Features
Detail Information
Product Name: Monoflange Valve
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-2500 LB, PN20-PN420
ANSI B16.5 flanged inlet connections
1/2 Inch-14 NPT(female) standard outlet
1/4 Inch-18 NPT(female) standard vent
Standard Materials:
Stainless Steel: ASTM A182 F316/F316L
Carbon Steel: ASTM A350 LF2/A105
Duplex Steel: ASTM A182 F51
Optional materials include Super Duplex, Monel, Hastelloy, Inconel
Key Features
Combined needle and OS & Y valves available.
Raised face and ring type joint flange styles.
One-piece forged construction flange as standard.
Fire safe designed to meet BS 6755 Part 2 / API 607. (As option)
Pressure boundary designs calculated to ASME VIII Div 1 and verified by testing.
Heat code traceable material to EN 10204.3.1.
Bubble tight shut off valve seats 17-4 PH tips standard.
Colour coded functional valves.
Locking and anti tamper devices for all valve types available. (as option)
Permanent marked body with full order and specification details.
