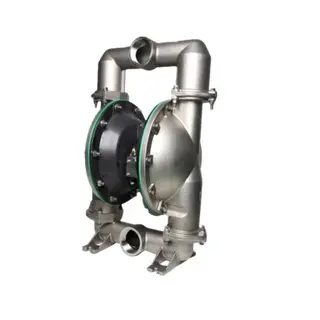

DN80 Pneumatic Diaphragm Pump, 0-890 L/min, 0-70 Meters Lift
Model Number: MV-20250403-PDP-01
Key Specifications / Features
The DN80 Pneumatic Diaphragm Pump is a high-performance pump designed for efficient fluid transfer in various industrial applications. With an aluminum alloy or stainless steel body, it offers durability and corrosion resistance. This pump delivers a flow rate ranging from 0 to 890 L/min and a lift capacity of up to 70 meters, making it versatile for different pumping needs. The 3-inch size and pressure range of 0.15-0.7 MPa ensure reliable operation under varying conditions.
Detail Information
Product Name: DN80 Pneumatic Diaphragm Pump
Body Material: Aluminum Alloy, Stainless Steel
Maximum Flow Rate (flooded inlet): 0-890 L/min (liters per minute)
Suction Lift: (Dry suction) 2.5 Meters, (Wet suction) 5 Meters
Maximum Lift: 0-70 Meters
Outlet pressure: 0.15-0.7 MPa
Maximum Particle Size: 9.5mm
Air inlet threads type: G
Air inlet threads size: 3 Inch (DN80)
Air inlet pipe size: 16mm or 3/4 Inch
Air inlet pressure range: 0.15-0.7 MPa
Net Weight: 50KG (Aluminum Alloy), 100KG (Stainless Steel)
Supplier Information
Zhejiang Magpie Sealing Technology Co., Ltd.
Verified Supplier
Three Bridge Industrial Zone, Oubei Town, Wenzhou, Zhejiang, China
Est. 2008
Certifications:
API 622
ISO 15848-1
TA-Luft
API 624
API 641
