Y Hydraulic Control Valves, 2-16 Inch, 300 PSI, Direct-Flow

Name: Y Hydraulic Control Valves, 2-16 Inch, 300 PSI, Direct-Flow
SKU: LV-CV-20250214-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We are a trusted factory specializing in hydraulic control valves, offering a range of Y-type, direct-flow models. Available in sizes from 2 inches to 16 inches (DN50 to DN400), these valves are designed to handle working pressures up to 300 PSI. Featuring flanged ends for secure installation, our valves are tested in accordance with API 598 standards to ensure reliable performance and quality. Count on us for durable, high-performance hydraulic control valves built to meet the demanding requirements of various industrial applications.

Request a quote

Detail Information

On this page

Hydraulic Control Valve, DN50-DN400, 300 PSI, Flanged.

Product Item: Y-Type Hydraulic Control Valve
Basic Valve: Y-Type Direct-Flow
Size Range: 2-16 Inch, DN50-DN400
Working Pressure: 300 PSI
Connection Ends: Flanged, ASME B16.1 Class 125 LB
Temperature Range: 0°C to 80°C
Testing Standard: API 598

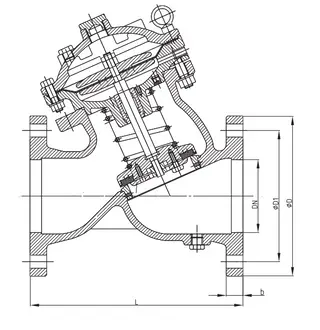

DIMENSIONS

Kv Values

DN	50	65	80	100	125	150	200	250	300	350	400	450	500	600
Kv	41	53	105	175	285	402	730	1160	1400	1770	3010	3225	3395	4272

Dimensions (mm)

DN (Inch)	DN (mm)	Dimensions (mm)
		L	H	D	D1	b	n-øL
2"	50	206	170	162	120.5	16	4-ø19.1
2.5"	65	211	195	178	139.5	17.5	4-ø19.1
3"	80	249	215	191	152.5	19	4-ø19.1
4"	100	320	255	229	190.5	24	8-ø19.1
6"	150	414	360	279	241.5	25.5	8-ø22.2
8"	200	500	450	343	298.5	28.5	8-ø22.2
10"	250	605	550	406	362	30.5	12-ø25.4

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

What is OS&Y?

OS&Y stands for Outside Screw and Yoke. This design places the threaded stem outside the valve body, with the yoke supporting the stem. It allows users to visually verify whether the valve is open or closed by observing the stem’s position.

OS&Y gate valves are commonly used in fire protection systems, including sprinklers, hydrants, and standpipes, due to their reliability and clear open/close indication.
