UPVC Pneumatic Butterfly Valve, 2-1/2 - 8 Inch, 150 PSI
Model Number: LV 22 PV 03
Key Specifications / Features
UPVC Pneumatic Butterfly Valve Supplier: Pneumatic Actuated Butterfly Valves, UPVC, 2-1/2-8 Inch, DN65-DN200, 150 PSI, ANSI, DIN, JIS, CNS, Flange Ends.
Detail Information
UPVC Pneumatic Actuated Butterfly Valve
Size: 2-1/2 Inch - 8 Inch, DN65-DN200
Joint End: Flange (ANSI, DIN, JIS, CNS)
Working Pressure: 150 PSI

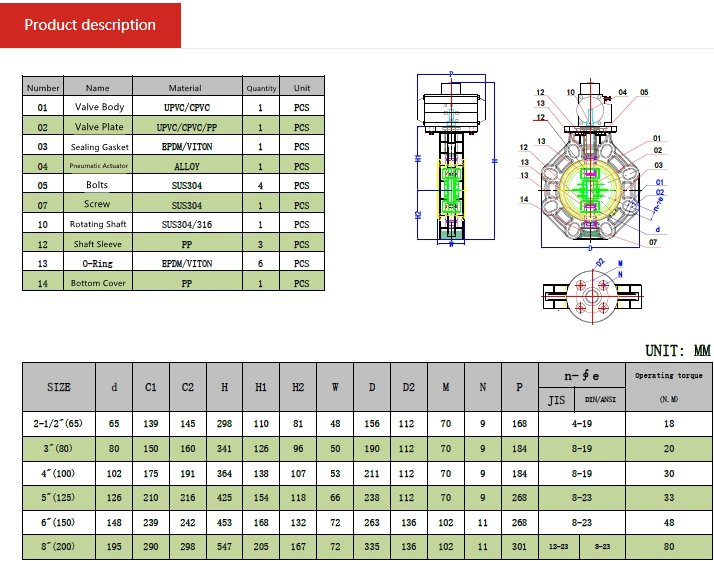

Component: UPVC, CPVC valve body; UPVC, CPVC, PP valve plate; EPDM, VITON sealing gasket; Alloy pneumatic actuator; SUS 304 bolts; SUS 304 screw; SUS 304, SUS 316 rotating shaft; PP shaft sleeves; EPDM, VITON O-Rings; PP bottom cover
Size: 2-1/2 Inch - 8 Inch, DN65-DN200
Joint End: Flange (ANSI, DIN, JIS, CNS)
Working Pressure: 150 PSI
Component: UPVC, CPVC valve body; UPVC, CPVC, PP valve plate; EPDM, VITON sealing gasket; Alloy pneumatic actuator; SUS 304 bolts; SUS 304 screw; SUS 304, SUS 316 rotating shaft; PP shaft sleeves; EPDM, VITON O-Rings; PP bottom cover
Supplier Information
XIAMEN LANDEE INDUSTRIES CO., LTD.
Verified Supplier
NO. 321 JIAHE ROAD, XIAMEN, P.R.CHINA 361012
Est. 1994
Certifications:
ISO 9001
