Swing Check Valve with Weight and Lever, 300 PSI, FBE Coated
Model Number: LV-SCV-20241216-01
Key Specifications / Features
We are a leading manufacturer of swing check valves in China, designed for reliable performance in demanding applications. These valves feature a working pressure of 300 PSI and come equipped with a weight and lever mechanism for smooth operation. With ASME B16.1 Class 125 LB flanged ends, they ensure a secure, leak-free connection. The valves are coated with fusion-bonded epoxy for enhanced corrosion resistance and long-lasting durability. Perfect for a wide range of industrial applications, our swing check valves offer superior quality and performance at competitive prices.
Detail Information
Product Item: Swing Check Valve with Weight and Lever
Working Pressure: 300 PSI
Material: ASTM A536 65-45-12
200 PSI and 250 PSI available upon request
Temperature Range: 0°C to 80°C
Coating: Fusion Bonded Epoxy Coating per ANSI/AWWA C550
Connection Ends: Flange to ASME B16.1 Class 125 LB

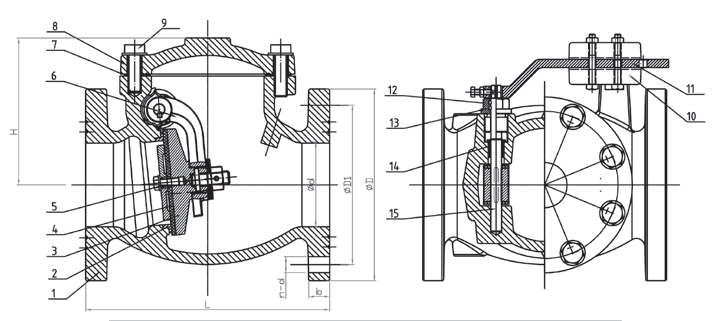

Material Specification
| Part No. | Part | Standard Specification | Options |
| 1 | Body | ASTM A536, 65-45-12 | Cast Iron A126 CL B |
| 2 | Seat Ring | Bronze ASTM B62 (Pressed Fit) | AISI 304, AISI 316 Pressed Fit or Threaded |
| 3 | Disc | ASTM A536, 65-45-12 | |
| 4 | Disc Sealing Ring | EPDM | AISI 304, AISI 316, Bronze ASTM B62 |
| 5 | Bolt | AISI 304 | AISI 316 |
| 6 | Clapper Arm | ASTM A536, 65-45-12 | |
| 7 | Bonnet Gasket | EPDM | |
| 8 | Bonnet | Cast Iron A126 CL B | ASTM A536, 65-45-12 |
| 9 | Bolt | Carbon Steel Zinc Plated | AISI 316 |
| 10 | Weight | Cast Iron A126 CL B | ASTM A536, 65-45-12 |
| 11 | Lever | Carbon Steel Zinc Plated | |
| 12 | Nut | Brass ASTM B36 | |
| 13 | O-Ring | NBR | EPDM |
| 14 | Hinge Bushing | Brass ASTM B36 | |
| 15 | Hinge Pin | AISI 304 | AISI 316 |
Note: For special material requests that differ from the standard specifications, please clearly indicate them on the inquiry or order list.
Dimensions
| DN | Dimensions (mm) | |||||||
| Inch | mm | L | D | D1 | b |
n-ød |
H | |
| Standard | Optional | |||||||
| 2" | 50 | 203 | 203 | 152 | 120.5 | 16.5 | 4-ø19.1 | 145 |
| 2.5" | 65 | 216 | 254 | 178 | 139.5 | 19 | 4-ø19.1 | 157 |
| 3" | 80 | 241 | 278 | 191 | 152.5 | 19 | 4-ø19.1 | 173 |
| 4" | 100 | 292 | 330 | 229 | 190.5 | 24 | 8-ø19.1 | 176 |
| 6" | 150 | 356 | 406 | 279 | 241.5 | 25.5 | 8-ø22.2 | 238 |
| 8" | 200 | 495 | 495 | 343 | 298.5 | 28.5 | 8-ø22.2 | 273 |
| 10" | 250 | 622 | 622 | 406 | 362 | 30.5 | 12-ø25.4 | 329 |
| 12" | 300 | 698 | 660 | 483 | 432 | 32 | 12-ø25.4 | 358 |
| 14" | 350 | 787 | － | 533 | 476 | 35 | 12-ø28.5 | 470 |
| 16" | 400 | 914 | － | 597 | 540 | 36.5 | 16-ø28.5 | 535 |
Note: Standard of Face-to Face in according with ASME B16.10 CL125.
Optional of Face-to Face in according with AWWA C508.
