Resilient-seated Gate Valves, AWWA C515, ASTM A536, 2-8 Inch

Resilient-seated Gate Valves, AWWA C515, ASTM A536, 2-8 Inch

Model Number: LV-GTV-20250214-07

Key Specifications / Features

These high-performance gate valves are crafted from durable ductile iron, meeting ASTM A536 Grade 65-45-12 standards. Available in sizes ranging from 2 to 8 inches, they are designed for a pressure rating of 300 PSI. Featuring both flanged and socket ends, these resilient-seated valves ensure a tight seal and reliable operation. The non-rising stem design makes them ideal for space-constrained installations. Built to meet AWWA C515 specifications, these valves are perfect for water supply and distribution systems, offering durability, efficiency, and long-term performance.
AWWA C515 Gate Valve resilient seated gate valve ASTM A536 Grade 65-45-12 Gate Valve
Share:

Detail Information

Product Item: Resilient-seated Gate Valve, NRS
Standard: AWWA C515
Body Material: ASTM A536 Grade 65-45-12
Size Range: 2 Inch - 8 Inch, DN50-DN200
Working Pressure: 300 PSI (Standard), 200 PSI and 250 PSI available upon request
Temperature Range: 0°C to 80°C
Coating: Fusion Bonded Epoxy Coating (ANSI/AWWA C550), Painting available upon request
Applications: Potable Water, Water Distribution Service & Feed Lines, Sewage Disposal, Irrigation, Fire Protection Pipe Systems
End Connection:
Flanged End: ASME B16.5 Class 125 LB
Socket End: Suitable for IPS PVC Pipes (ASTM D2672)

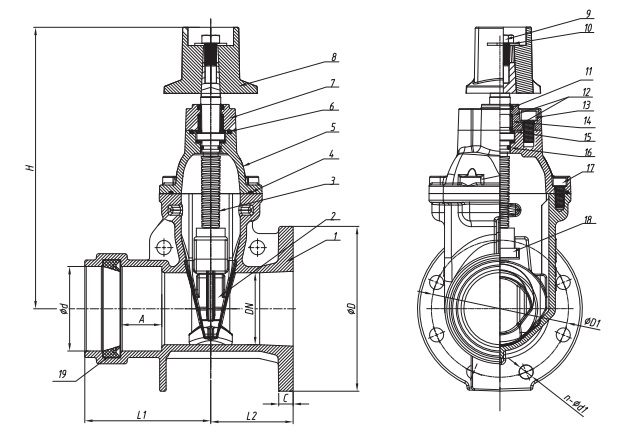

Drawing for Gate Valve



MATERIAL SPECIFICATION

Part No. Part Standard Specification
1 Valve Body ASTM A536 65-45-12
2 Resilient Wedge Disc ASTM A536 65-45-12+EPDM
3 Stem ANSI 420
4 Bonnet Gasket EPDM
5 Bonnet ASTM A536 65-45-12
6 O-Ring NBR
7 Gland Flange ASTM A536 65-45-12
8 Square Operating Nut ASTM A536 65-45-12
9 Bolt Carbon Steel Zinc Plated
10 Flat Washer Carbon Steel Zinc Plated
11 Ring Wiper EPDM
12 O-Ring NBR
13 Bolt Carbon Steel Zinc Plated
14 Axis Guide BraANSI HPb59-1
15 Washer BraANSI HPb59-1
16 O-Ring NBR
17 Bolt Carbon Steel Zinc Plated
18 Wedge Nut BraANSI HPb59-1
19 Seal Ring NBR

Note: For special material requests other than standard specification, please indicate clearly in the inquiry or order list.



DIMENSIONS

DN PIPE DN Dimensions (mm)
Inch mm

Average Outside Diameter in.(mm)

 L1 L2 H A d D D1 C

n-Ød1

2"

 50 2.375 (60.32) 130 89 278 50 62 152 120.7 16 4-Ø19.1

2.5"

 65 2.875 (73.02) 136.5 95 300 53 75 178 139.7 17.5 4-Ø19.1

3"

 80 3.500 (88.90) 152.5 101.5 321 57 90.5 191 152.4 19.1 4-Ø19.1

4"

 100 4.500 (114.30) 175 114.5 375 57 117.5 229 190.5 19.1 8-Ø19.1

6"

 150 6.625 (168.28)

214

 133.5 455 95 172.5 279 241.3 19.1 8-Ø22.2

8"

 200 8.625 (219.08) 235 146 565 118 222 343 298.5 22.2 8-Ø22.2
