MSS SP-67 Grooved Butterfly Valves, 300 PSI, AWWA C606

MSS SP-67 Grooved Butterfly Valves, 300 PSI, AWWA C606

Model Number: LV-BTV-20241216-03

Key Specifications / Features

As a leading grooved butterfly valve factory, we offer valves designed to meet MSS SP-67 standards, ensuring reliable performance and durability. With a working pressure of 300 PSI, these valves feature AWWA C606 grooved ends for easy installation and secure connections. The ISO 5211 top flange allows for easy actuator mounting, enhancing flexibility. Additionally, the fusion-bonded epoxy coating provides excellent corrosion resistance, making them ideal for a range of industrial applications. Our grooved butterfly valves deliver exceptional quality and long-lasting reliability.
MSS SP 67 Butterfly Valve 300 PSI Butterfly Valve
Share:

Detail Information

Product Item: MSS SP-67 Grooved Butterfly Valve
Design Standard: MSS SP-67
Top Flange Standard: ISO 5211
Stem drive by keys, parallel or diagonal square or flat head
Working Pressure: 300 PSI
175 PSI, 200 PSI, and 250 PSI available upon request
Temperature Range: 0°C to 80°C
Connection Ends: Groove to AWWA C606
Coating: Fusion Bonded Epoxy Coating by ANSI/AWWA C550 or painting upon request

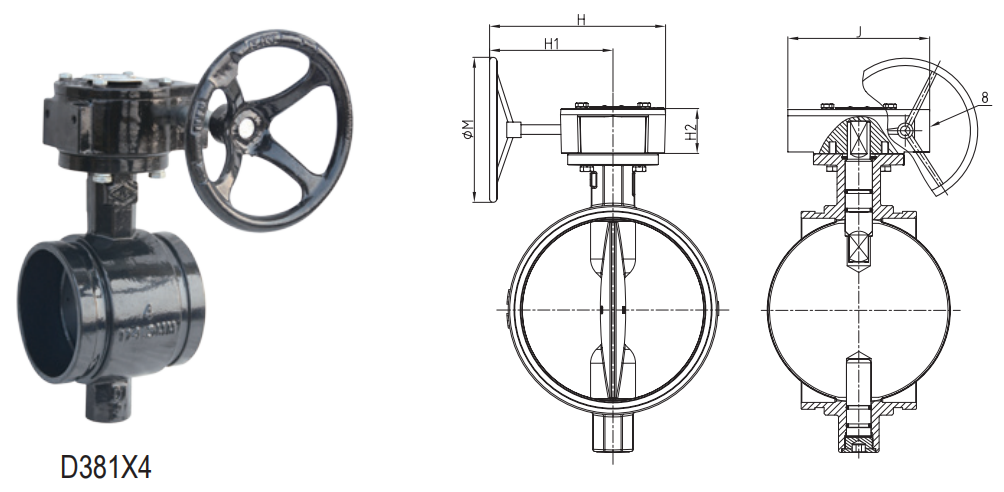

Drawing for Butterfly Valve

Material Specification

Part No. Part Standard Specification Options
1 Body ASTM A536, 65-45-12
2 Disc ASTM A536, 65-45-12+EPDM ASTM A536, 65-45-12+NBR
3 O-Ring NBR EPDM
4 Stem Stainless Steel AISI 304, AISI 316, AISI 420, AISI 431
5 O-Ring NBR EPDM
6 Stem Stainless Steel AISI 304, AISI 316, AISI 420, AISI 431
7 Lever ASTM A536, 65-45-12 Aluminum
8 Gear Box ASTM A536, 65-45-12

Note: For special material requests that differ from the standard specifications, please clearly indicate them on the inquiry or order list.

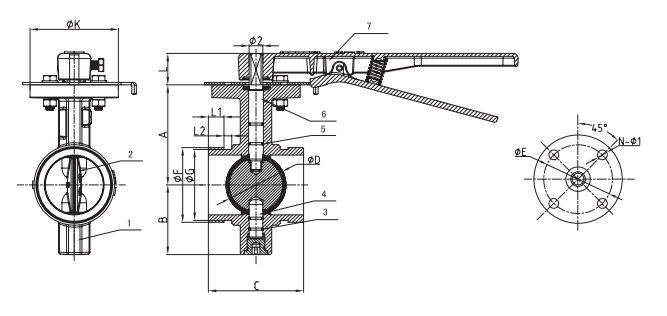

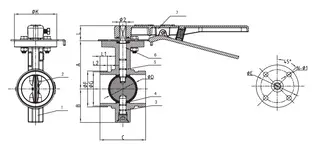

Drawing for Butterfly Valve







Dimensions

DN Dimension (mm)
Inch mm A B C

øF

øG

 L1 L2 L øK H H1 H2 J øM ø2 ISO 5211 øE N-ø1
2" 50 89 65 81 60.3 57.15 15.88 7.93 32 90 206 158 52 114 150 14 F07 70 4-ø10
2.5" 65 102 71 97 73.0 69.09 15.88 7.93 32 90 206 158 52 114 150 14 F07 70 4-ø10
3" 80 109 81 97 88.9 84.94 15.88 7.93 32 90 206 158 52 114 150 14 F07 70 4-ø10
4" 100 128 95 116 114.3 110.08 15.88 9.53 32 90 206 158 52 114 150 16 F07 70 4-ø10
5" 125 141 111 148 141.3 137.03 15.88 9.53 32 90 206 158 52 114 150 16 F07 70 4-ø10
6" 150 153 133 148 168.3 163.96 15.88 9.53 32 90 206 158 52 114 150 20 F07 70 4-ø10
8" 200 184 164 133 219.1 214.4 19.05 11.10 45 125 310 239 69 167 300 26 F10 102 4-ø12
10" 250 216 196 159 273.0 268.28 19.05 12.70 45 125 310 239 69 167 300 26 F10 102 4-ø12
12" 300 254 226 165 323.9 318.29 19.05 12.70 45 125 307 229 73 190 300 28 F10 102 4-ø12



Note: Valve must not be installed with disc in full open position. Disc must be partly closed so that not part is is protruding beyond end of valve body.
