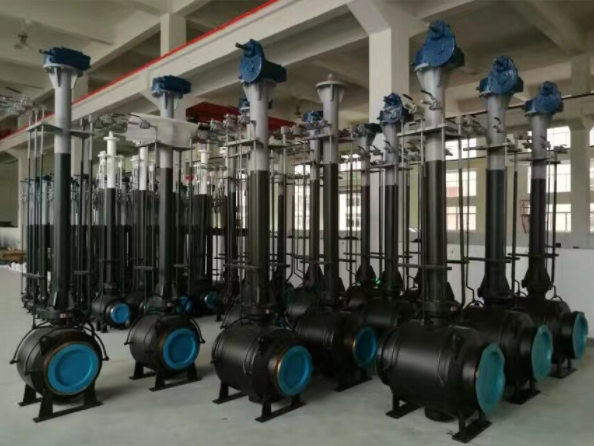

Fully Welded Steel Ball Valve, ISO 17292, API 6D, API 608
Key Specifications / Features
Introducing our versatile Product Range:
Nominal Diameter: NPS 2-60 Inch
Pressure Range: CLASS 150-2500 LB
Body Material: Duplex Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloy, Stainless Steel
Modes of Operation: Electric, Pneumatic, Lever, Gear Box, Hydraulic Device, Pneumatic-Hydraulic Device
End Connection: RF, RTJ, BW
With options tailored to meet various needs, our product range ensures adaptability and performance across diverse applications.
Detail Information
Fully Welded Ball Valve Design standard API 6D, API 608, ISO 17292
Product Range
1. Nominal diameter: NPS 2-60 Inch
2. Pressure range: CLASS 150-2500 LB
3. Body material: Duplex stainless steel, Carbon steel, Alloy steel, Nickel alloy, Stainless steel
4. Mode of operation: Electric, Pneumatic, Lever, Gear box, Hydraulic device, Pneumatic-hydraulic device
5. End connection: RF, RTJ, BW
Enhanced Product Features:
1. Minimal Flow Resistance: Ensures smooth operation.
2. Advanced Design Features:
Piston Seat: Provides enhanced safety and reliability.
Fire-Safe and Antistatic Design: Ensures operation under extreme conditions.
3. Flow Direction Flexibility: Allows for versatile installation.
4. Full Open Protection:
Gate in Full Contact: Safeguards seat surfaces when fully open, ideal for pigging pipelines.
Optimal Seat Positioning: Maintains continuous contact for extended durability.
5. Optional Spring-Loaded Packing: Offers customizable sealing solutions.
6. Eco-Friendly Option:
Low-Emission Packing: Complies with ISO 15848 standards for reduced environmental impact.
7. Extended Stem Design: Facilitates operation in deep or insulated installations.
8. Versatile Seat Options:
Metal-to-Metal Seat: Provides robust sealing for demanding applications.
9. Versatile Structure Choices:
DBB, DIB-1, DIB-2: Offers flexibility for specific operational requirements.
10. Secure Ball Fixation:
Supported by Fixed Plate and Shaft: Ensures stable performance under pressure.
11. Flexible Welding Options:
Single or Double Welding Joints: Provides installation versatility and structural integrity.
Product Range
1. Nominal diameter: NPS 2-60 Inch
2. Pressure range: CLASS 150-2500 LB
3. Body material: Duplex stainless steel, Carbon steel, Alloy steel, Nickel alloy, Stainless steel
4. Mode of operation: Electric, Pneumatic, Lever, Gear box, Hydraulic device, Pneumatic-hydraulic device
5. End connection: RF, RTJ, BW
Enhanced Product Features:
1. Minimal Flow Resistance: Ensures smooth operation.
2. Advanced Design Features:
Piston Seat: Provides enhanced safety and reliability.
Fire-Safe and Antistatic Design: Ensures operation under extreme conditions.
3. Flow Direction Flexibility: Allows for versatile installation.
4. Full Open Protection:
Gate in Full Contact: Safeguards seat surfaces when fully open, ideal for pigging pipelines.
Optimal Seat Positioning: Maintains continuous contact for extended durability.
5. Optional Spring-Loaded Packing: Offers customizable sealing solutions.
6. Eco-Friendly Option:
Low-Emission Packing: Complies with ISO 15848 standards for reduced environmental impact.
7. Extended Stem Design: Facilitates operation in deep or insulated installations.
8. Versatile Seat Options:
Metal-to-Metal Seat: Provides robust sealing for demanding applications.
9. Versatile Structure Choices:
DBB, DIB-1, DIB-2: Offers flexibility for specific operational requirements.
10. Secure Ball Fixation:
Supported by Fixed Plate and Shaft: Ensures stable performance under pressure.
11. Flexible Welding Options:
Single or Double Welding Joints: Provides installation versatility and structural integrity.
