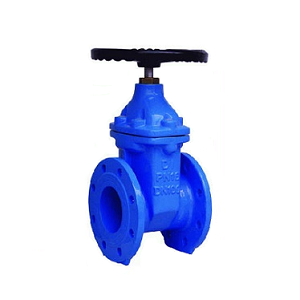

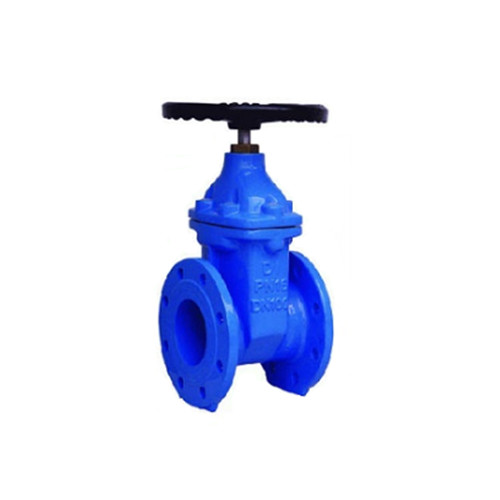

EN GJL 250 Gate Valve, Cast Iron, 1-1/2-12 Inch, 150 LB
Model Number: LV 23 CGV 01
Key Specifications / Features
Gate Valve Factory: EN GJL 250 Cast Iron Gate Valves, 1-1/2 Inch-12 Inch, DN40-DN300, PN16, Flange DIN 2532, 2533, 2501, Class 150 LB.
Detail Information

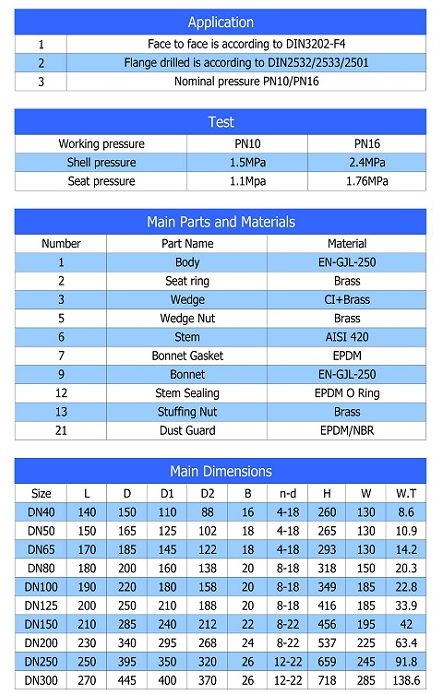

EN GJL 250 Cast Iron Gate Valve, Normal Pressure: PN10/PN16, Size: DN40-DN300, Seat Ring: Brass, Face to Face DIN3202 F4, Flange drilled according to DIN 2532 / DIN 2533 / DIN 2501
Specification:
Material: Cast Iron
Product Item: Gate Valve
Standard: EN GJL 250
Size: DN40-DN300, 1-1/2 - 12 Inch
Pressure: PN10/PN16, Class 150 LB
Face to Face: DIN 3202 F4
Specification:
Material: Cast Iron
Product Item: Gate Valve
Standard: EN GJL 250
Size: DN40-DN300, 1-1/2 - 12 Inch
Pressure: PN10/PN16, Class 150 LB
Face to Face: DIN 3202 F4
Supplier Information
XIAMEN LANDEE INDUSTRIES CO., LTD.
Verified Supplier
NO. 321 JIAHE ROAD, XIAMEN, P.R.CHINA 361012
Est. 1994
Certifications:
ISO 9001
