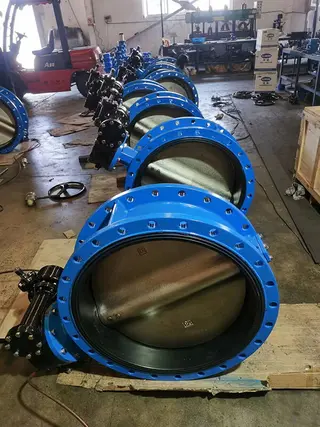

Double Flanged Butterfly Valves, DI, 32 Inch, CL150, Flanged
Model Number: LV-BTV-20260120-02
Key Specifications / Features
As a leading double flanged butterfly valve factory in China, we manufacture high-performance U-type butterfly valves designed for reliable flow control in large-diameter pipelines. This 32-inch butterfly valve features a durable ductile iron body and disc, delivering excellent strength and long service life. Rated for Class 150 LB with DN800 size and PN16 pressure, it is suitable for water supply, wastewater treatment, and industrial applications. The EPDM resilient seat ensures tight sealing and low leakage, while the gearbox operation provides smooth, precise control with minimal torque. Combining robust construction with stable performance, this double flanged butterfly valve offers a dependable and cost-effective solution for demanding systems.
Detail Information
Product Name: U-Type Butterfly Valve
Type: U-Type Resilient Seat Flanged Butterfly Valve
Body Style: Double Flanged
Sizes: 32 Inch, DN800
End Connection: Class 150 LB, PN16
Body Material: Ductile Iron
Disc Material: DI
Shaft Material: SS 431
Seat Material: EPDM
Face-to-Face Dimension: ISO 5752-20
Top Flange: ISO 5211
Operator: Gearbox
Type: U-Type Resilient Seat Flanged Butterfly Valve
Body Style: Double Flanged
Sizes: 32 Inch, DN800
End Connection: Class 150 LB, PN16
Body Material: Ductile Iron
Disc Material: DI
Shaft Material: SS 431
Seat Material: EPDM
Face-to-Face Dimension: ISO 5752-20
Top Flange: ISO 5211
Operator: Gearbox
