DIN 3202 Dual Plate Wafer Check Valve, PN10, PN16

Name: DIN 3202 Dual Plate Wafer Check Valve, PN10, PN16
SKU: LV 14 WCV 04
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China DIN 3202 Dual Plate Wafer Check Valve: PN10, PN16 Wafer Check Valve, DIN 3202-K3, GB 12221-16, Flanged, DN25-1000, Iron, Aluminum Bronze, Steel.

Request a quote

Detail Information

Type: Dual Plate Wafer Check Valve.

Valve Body materials: Cast Iron, Ductile Iron, Aluminum Bronze, Stainless Steel and Carbon Steel.

Applicable temperature: from -40 to +230 degrees Celsius.

Working pressure: PN10, PN16.

Size Range: from 2 to 40 inches diameter (DN25 to DN1000).

Face to face according to DIN 3202-K3, GB 12221-16,

Flange drilling according to ANSI 125/150, DIN 2501 PN10/PN16, AS 2129 Table E, JIS 10K.

Similar Products

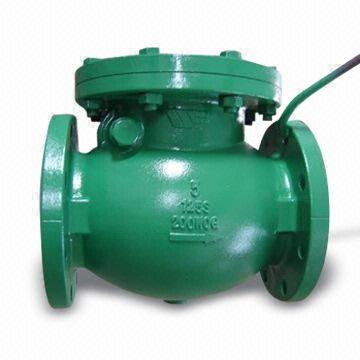

Ductile Iron Swing Check Valve, PN10, PN16, 125LB

Lug Butterfly Valve, API 609, EN 593, DI, CI

Triple Offset Butterfly Valve, 24 Inch, CI, DI

Wafer Style Butterfly Valve, Steel, Iron

Products you might also like

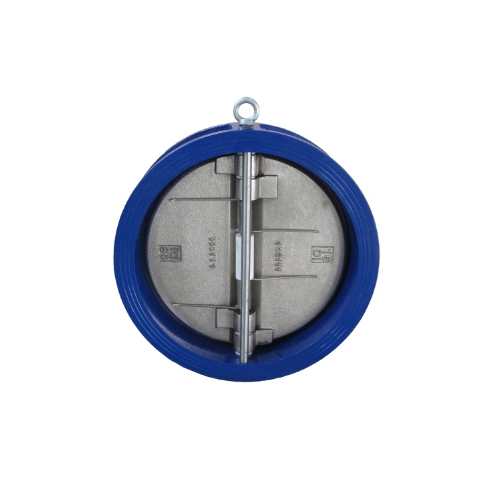

DIN 3202 Cast Iron Dual Plate Check Valve, DN250, PN16

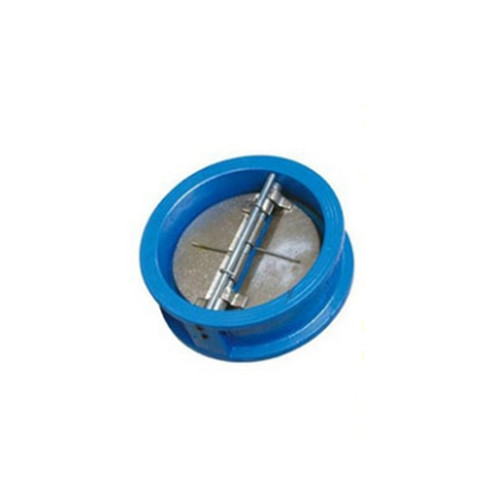

GG25 GGG40 Wafer Dual Disc Check Valve, DIN 3202-K3
