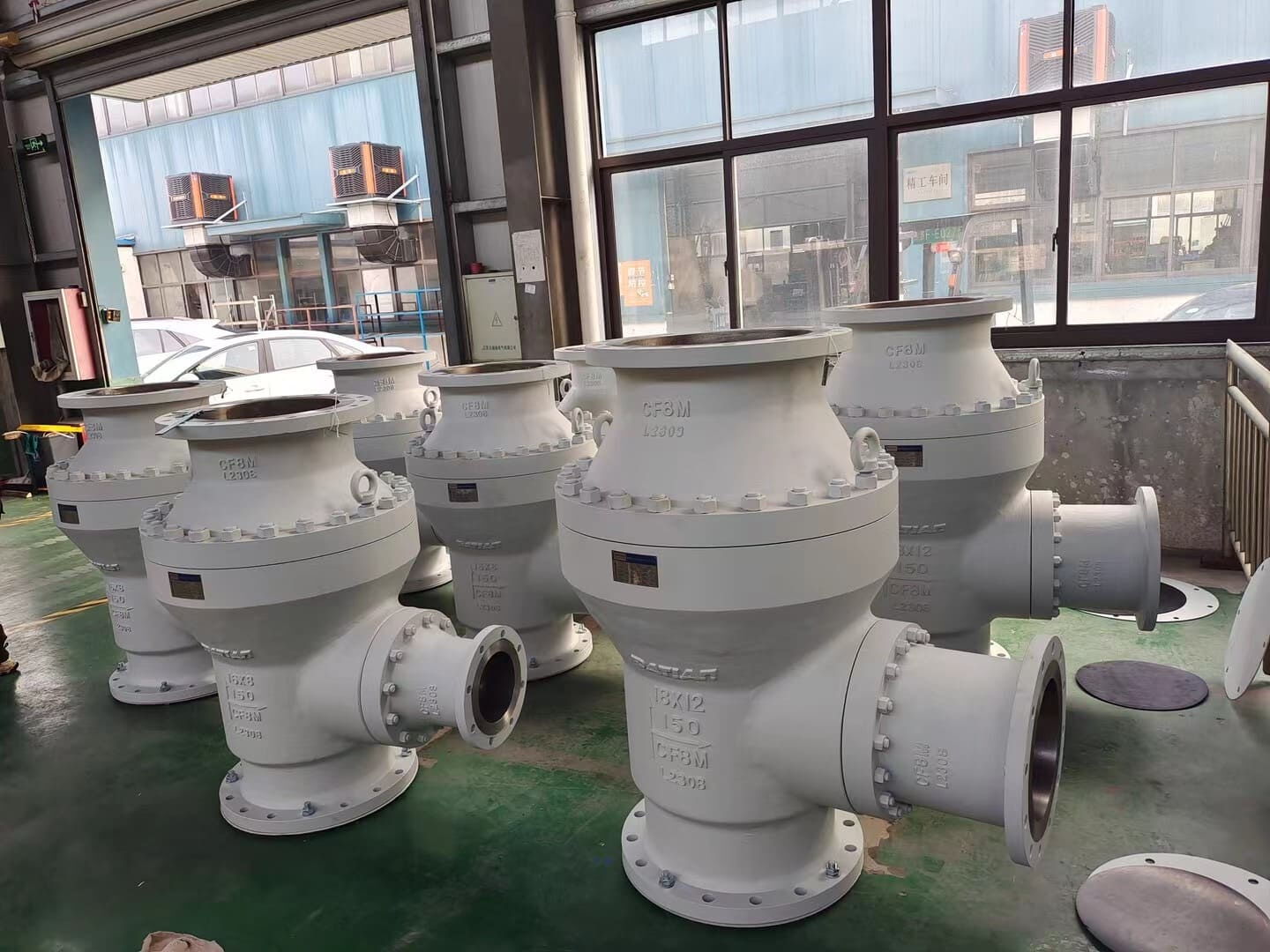

Cast Steel ARC Automatic Recirculation Control Valve

Name: Cast Steel ARC Automatic Recirculation Control Valve
SKU: LV-CV-20240730
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Automatic Recirculation Control Valve Manufacturer in China: Specializing in cast carbon steel and stainless steel valves, available in Class 150-400 LB, ranging from 1 to 16 inches, including 12-inch (DN300, PN20) options. Our ARC valves feature a simple structure and low cost, ensuring long-lasting performance and suitability for low-pressure working conditions. They provide a high bypass flow, with a maximum flow rate of up to 60% of the main flow. The KV value is adjustable to meet specific requirements. Designed to handle a maximum operating pressure differential of up to 4 MPa, these valves are versatile and efficient for various applications, making them an excellent choice for a wide range of industrial needs.

Request a quote

Detail Information

Product Item: ARC Automatic Recirculation Control Valve
Size Range: 1 Inch - 16 Inch
Pressure Range: Class 150 LB - 400 LB
Size: 12 Inch, DN300
Pressure: Class 150 LB, PN20
Body Material: Cast Steel, Carbon Steel or Stainless Steel, etc

Applications Of ARC Valve:
Chemical Industry
Petrochemical Industry
Steel Manufacturing
Fire Protection Systems
Traditional Power Plants
Paper Manufacturing
Maritime Shipping
Environmental Protection
