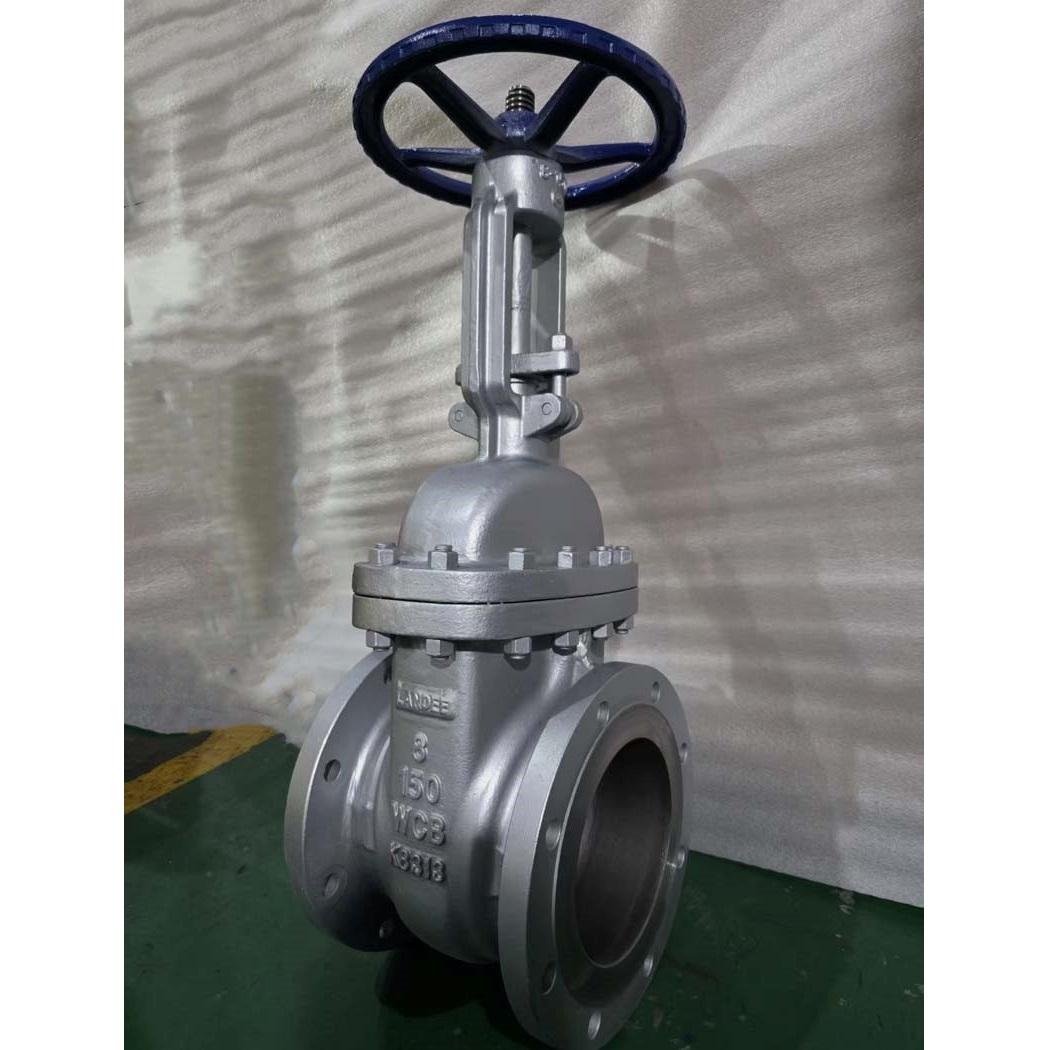

Carbon Steel Gate Valve, ASME B16.34, WCB, 8 IN, 150 LB, RF
Model Number: LV-20260917-GV-01
Key Specifications / Features
This DN200 Class 150 gate valve comes with an ASTM A216 WCB carbon steel casing and 8# internal trim, along with raised-face flange joints. Its disc adopts a WCB base with 13CR hard facing, while the seat uses a WCB substrate coated with STL overlay, matched with an ASTM A182 F6a valve stem. Users can rotate the handwheel manually to realize complete open or closed status to isolate fluid inside pipework. Built to ASME B16.34 and ASME B16.5 requirements, every unit is subject to API 598 hydraulic inspection. It delivers stable shut-off performance and works for oil, gas, and various industrial process piping applications.
Detail Information
Product Type: Gate valve
Size: 8 Inch, DN200
Pressure rating: Class 150 LB, PN20
Body material: ASTM A216 WCB carbon steel
Disc material: WCB with 13CR overlay
Seat material: WCB with STL overlay
Stem material: ASTM A182 F6a
Internal trim: 8#
End connection: RF, Raised Face flange
Design specification: ASME B16.34
Flange dimension standard: ASME B16.5
Actuation: Manual handwheel control
Function: Pipeline media shut-off and isolation
Surface finish: Anti-corrosion protective coating
Examination and pressure test: API 598
Size: 8 Inch, DN200
Pressure rating: Class 150 LB, PN20
Body material: ASTM A216 WCB carbon steel
Disc material: WCB with 13CR overlay
Seat material: WCB with STL overlay
Stem material: ASTM A182 F6a
Internal trim: 8#
End connection: RF, Raised Face flange
Design specification: ASME B16.34
Flange dimension standard: ASME B16.5
Actuation: Manual handwheel control
Function: Pipeline media shut-off and isolation
Surface finish: Anti-corrosion protective coating
Examination and pressure test: API 598
